MENRED G6 ERV Air conditioner

MENRED G6 ERV Air conditioner MENRED G6 ERV Air conditioner

MENRED G6 ERV Air conditioner

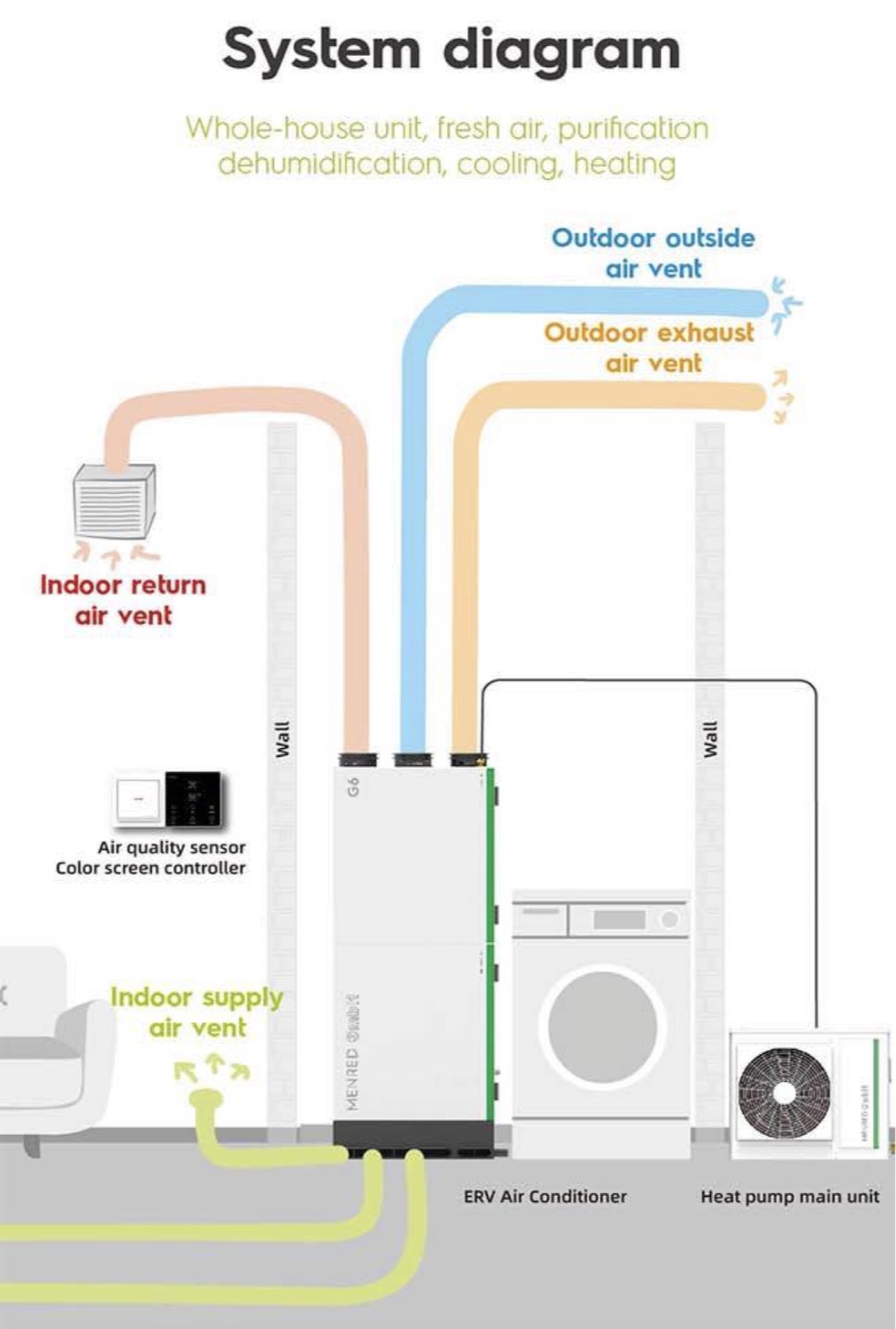

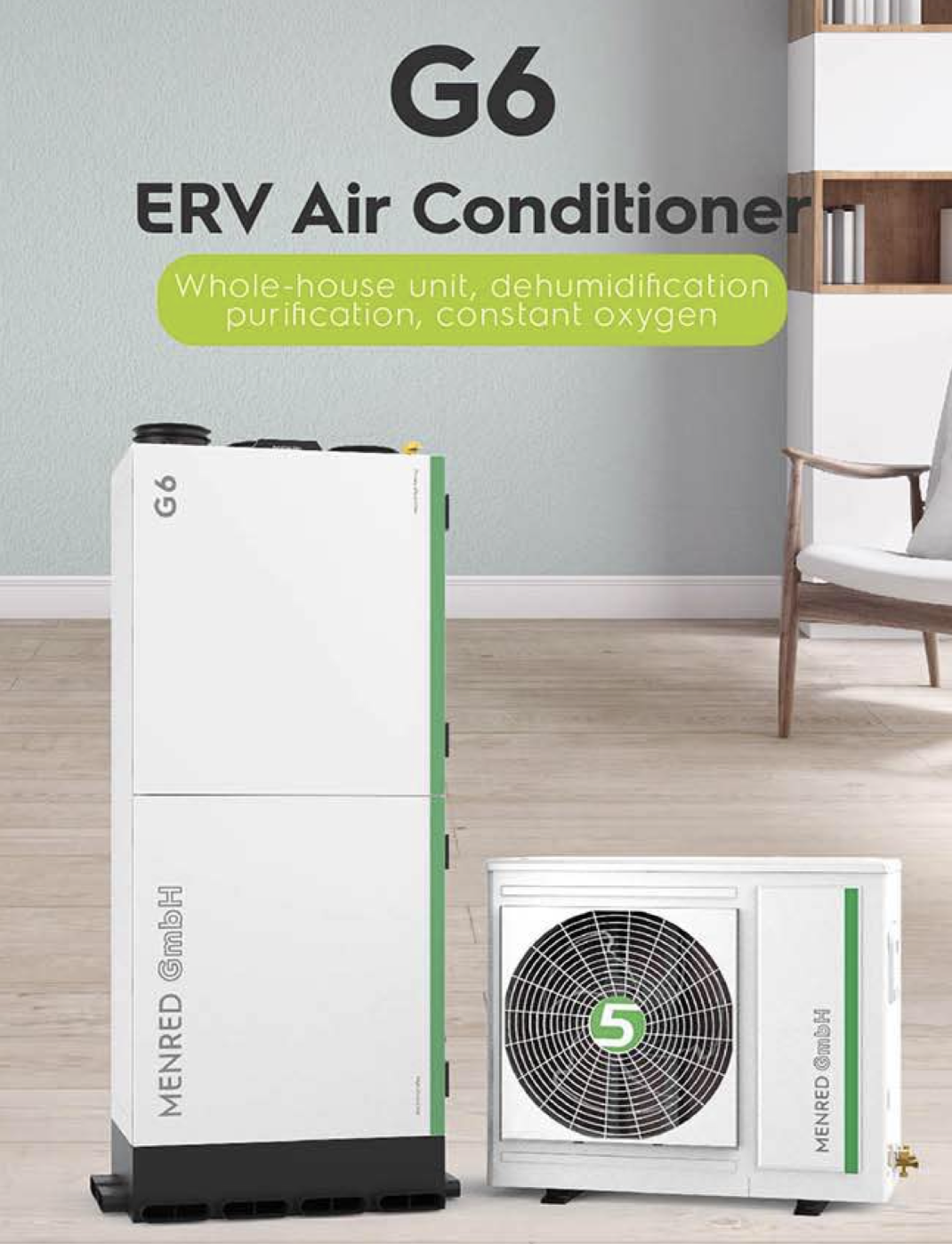

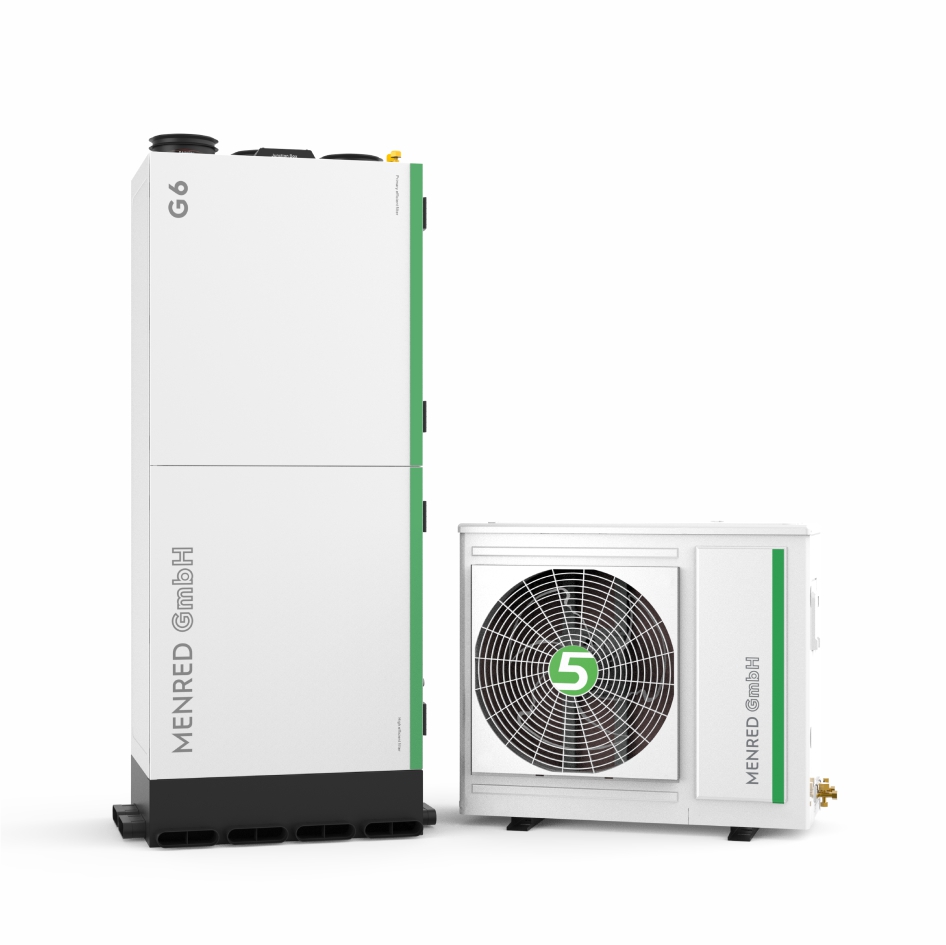

The Menred G6 Energy Recovery Ventilator (ERV) Air conditioner seamlessly integrates fresh air ventilation, air purification, dehumidification, cooling, and heating functions into one unit. Boasting a sleek and modern design, the G6 is not only visually appealing but also easy to maintain. Its high-efficiency energy recovery system ensures optimal energy usage, while its silent operation ensures minimal noise disturbance. Experience the ultimate air quality and temperature control solution with the Menred G6 ERV.

The Menred G6  Energy Recovery Ventilator (ERV)Air Conditioner offers a comprehensive solution for improving indoor air quality and temperature control. Its key advantages are as follows:


  1. Integrated Fresh Air Ventilation: The G6 combines fresh air supply with air conditioning, allowing for continuous ventilation and ensuring that occupants have access to clean and healthy air.

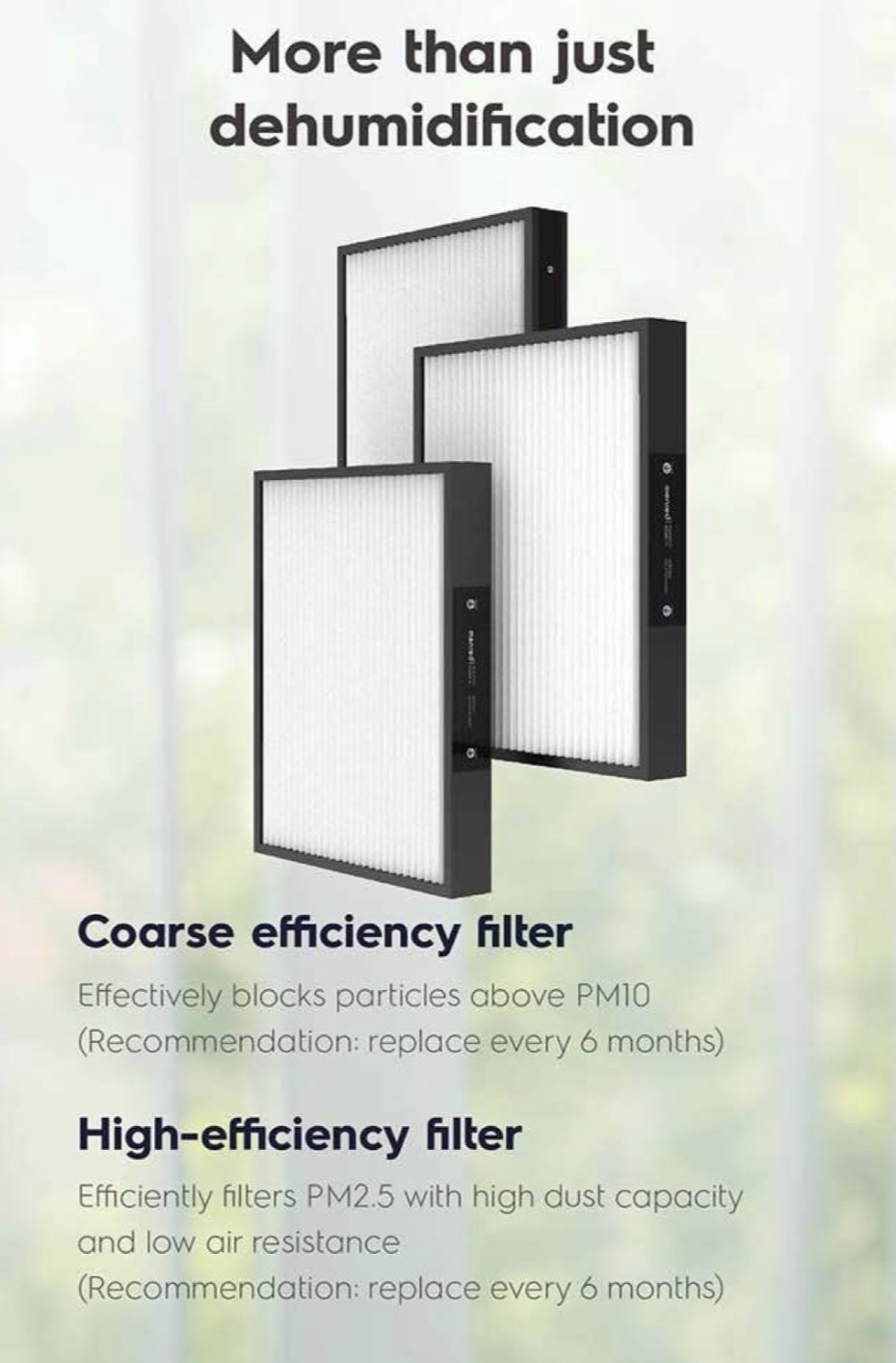

  2. Air Purification: With built-in air purification technology, the G6 effectively removes dust, allergens, and harmful pollutants, providing a safer and more comfortable living environment.
  3. Dehumidification: The G6 incorporates dehumidification capabilities, effectively reducing excessive humidity in the air. This feature is especially useful in humid climates, preventing mold growth and maintaining comfortable indoor conditions.
  4. Cooling and Heating: The G6 offers both cooling and heating functions, allowing users to maintain desired temperatures throughout the year. Whether it’s hot summers or cold winters, the G6 can ensure a comfortable living environment, no matter the season.

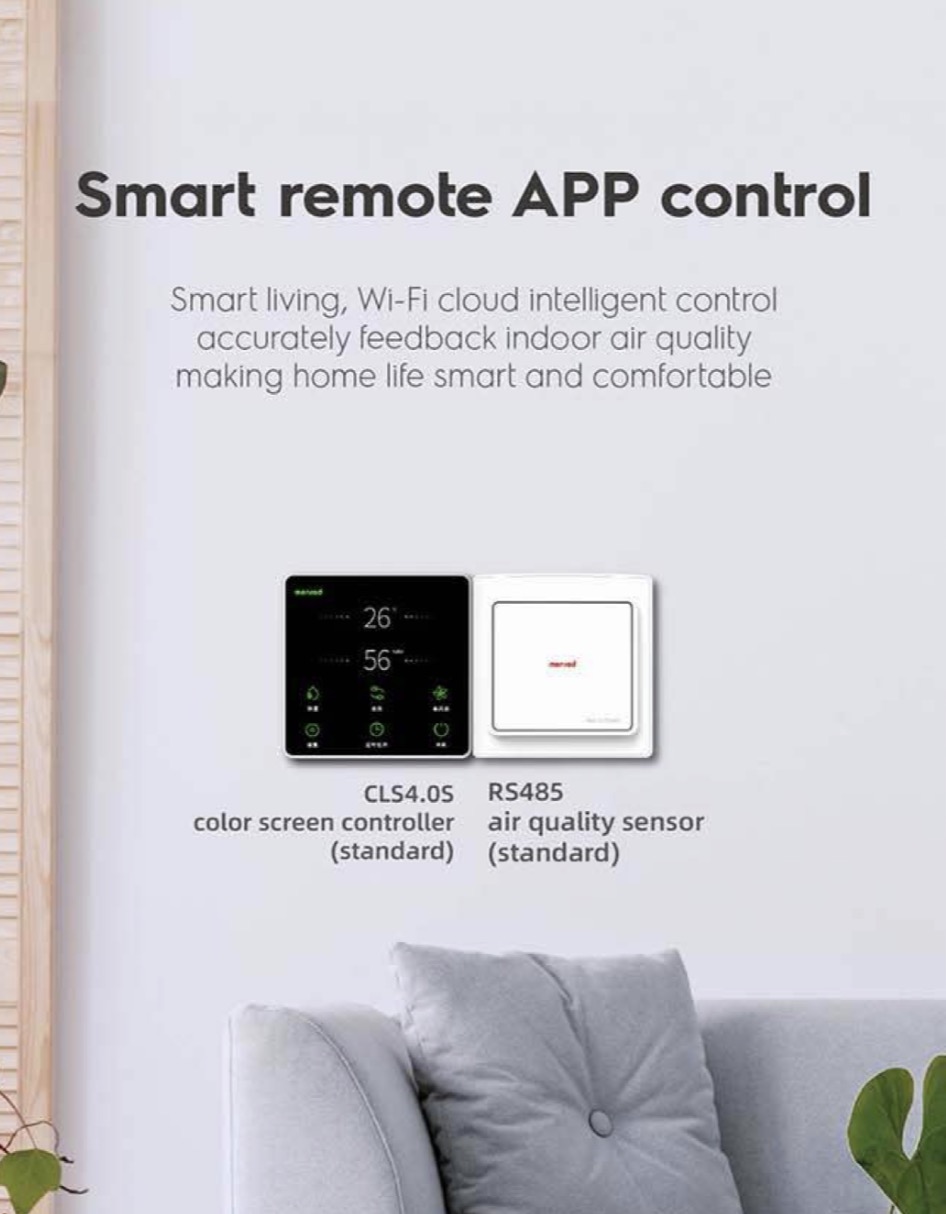

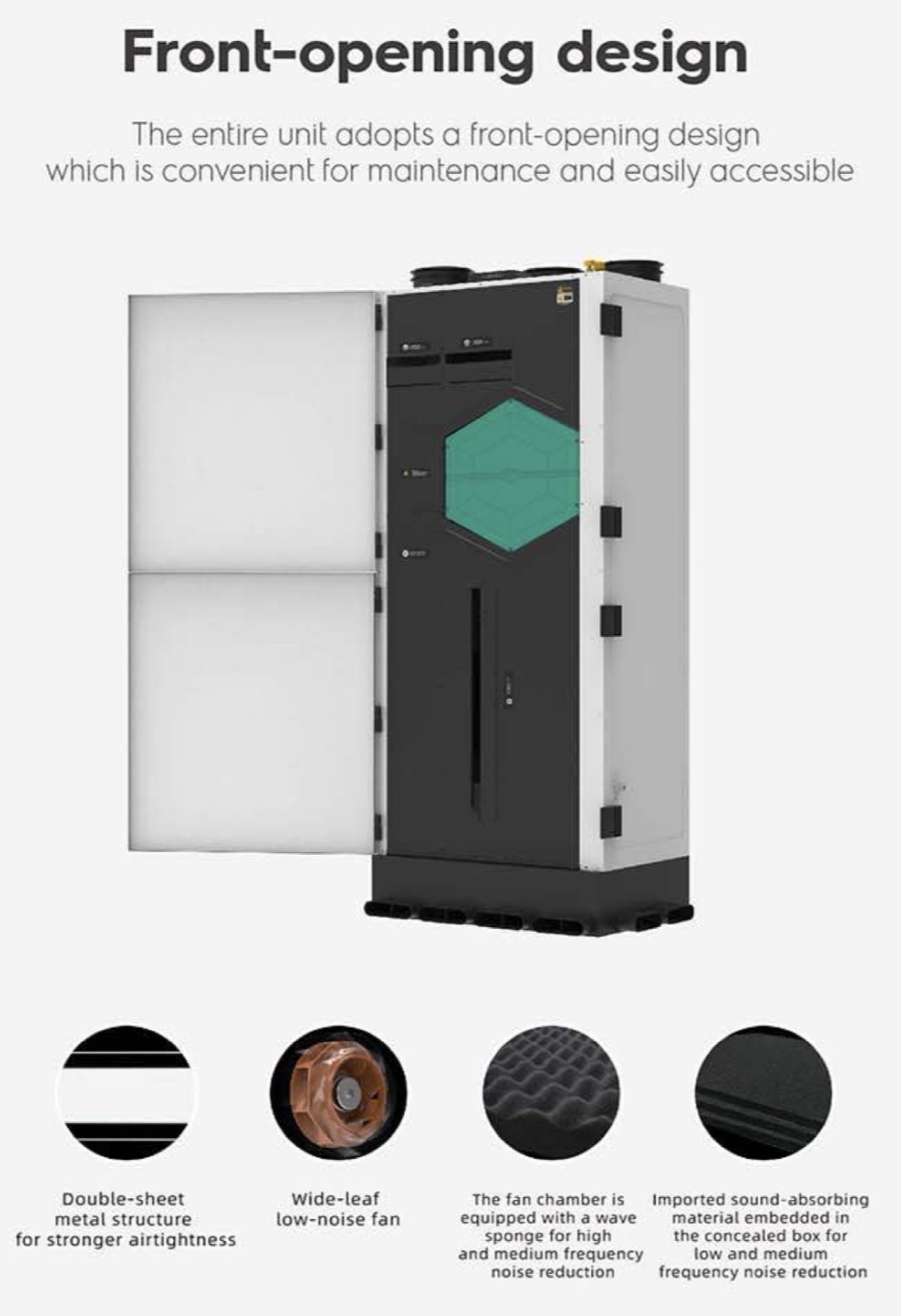

  5. Easy Maintenance: The G6 is designed for easy maintenance, ensuring that users can keep their ventilation systems running smoothly. Its user-friendly interface and low maintenance requirements make it an ideal choice for busy homeowners.

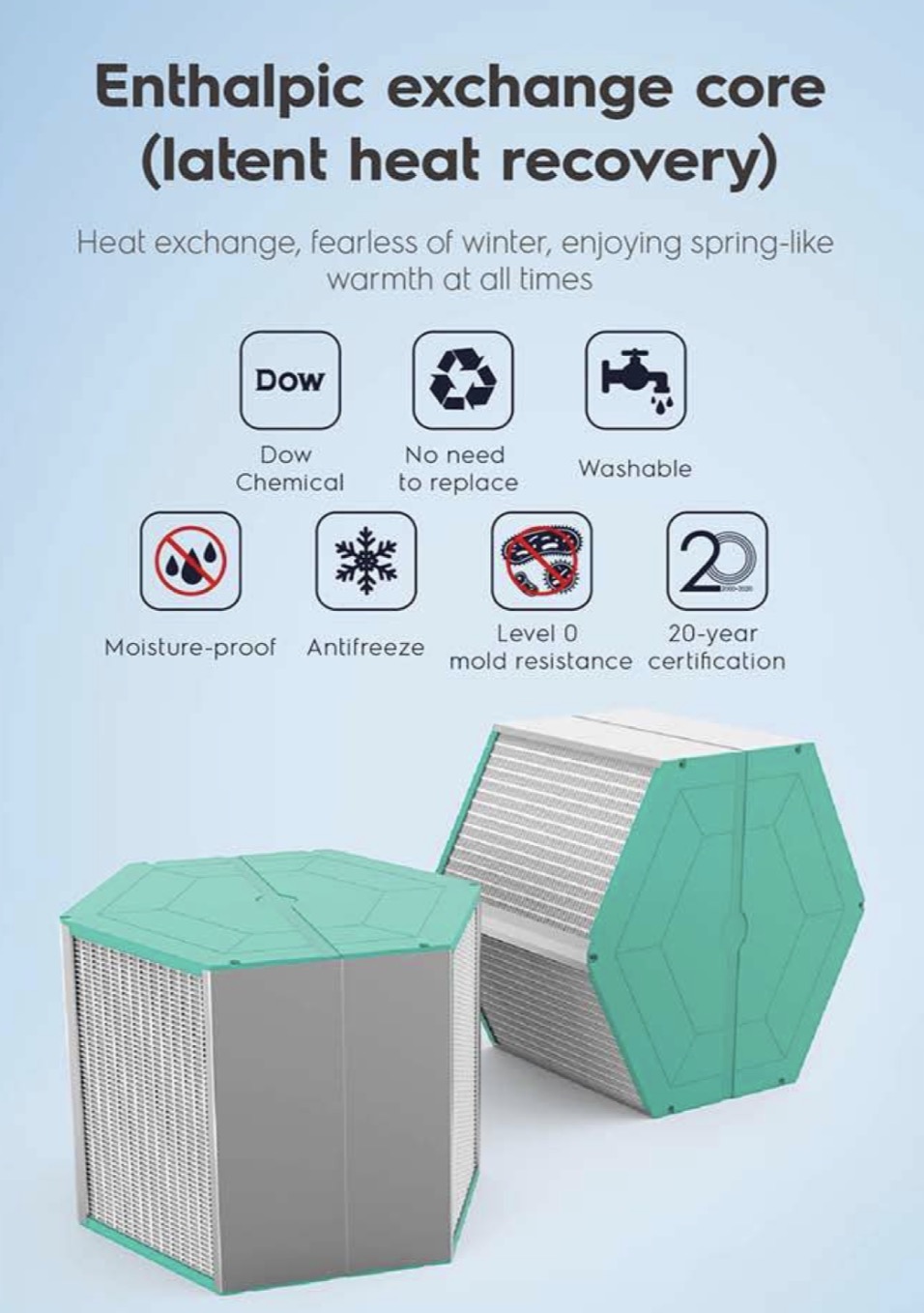

  6. High Energy Efficiency: The G6 uses an energy recovery system that effectively utilizes waste heat from exhaust air to preheat the incoming fresh air supply. This results in significant energy savings and helps to reduce overall environmental impact.
  7. Quiet Operation: The G6 operates silently, making it ideal for use in residential settings and any indoor environment that requires minimal noise disturbance.


menred G6-7

menred G6-8

menred G6-9

menred G6-10

menred G6-11

menred G6-11

menred G6-13



Power supply: 220V~50Hz                Max air volume: 600m3/h

Rated air volume: 350m3/h                Max. power: 295W

Rated Power: 130W.                            Excess pressure of Supply fan*: 80Pa

Cooling enthalpy efficiency:67%       Excess pressure of exhaust fan*: 50Pa

Heating enthalpy efficiency:72%       Net fresh air supply: 345m3/h

Net fresh air supply rate: 98.5%         PM2.5 filter efficiency: 99.8%

Power comsumption per fresh air volume:0.37W(m3/h)

Noise: 39dB(A)

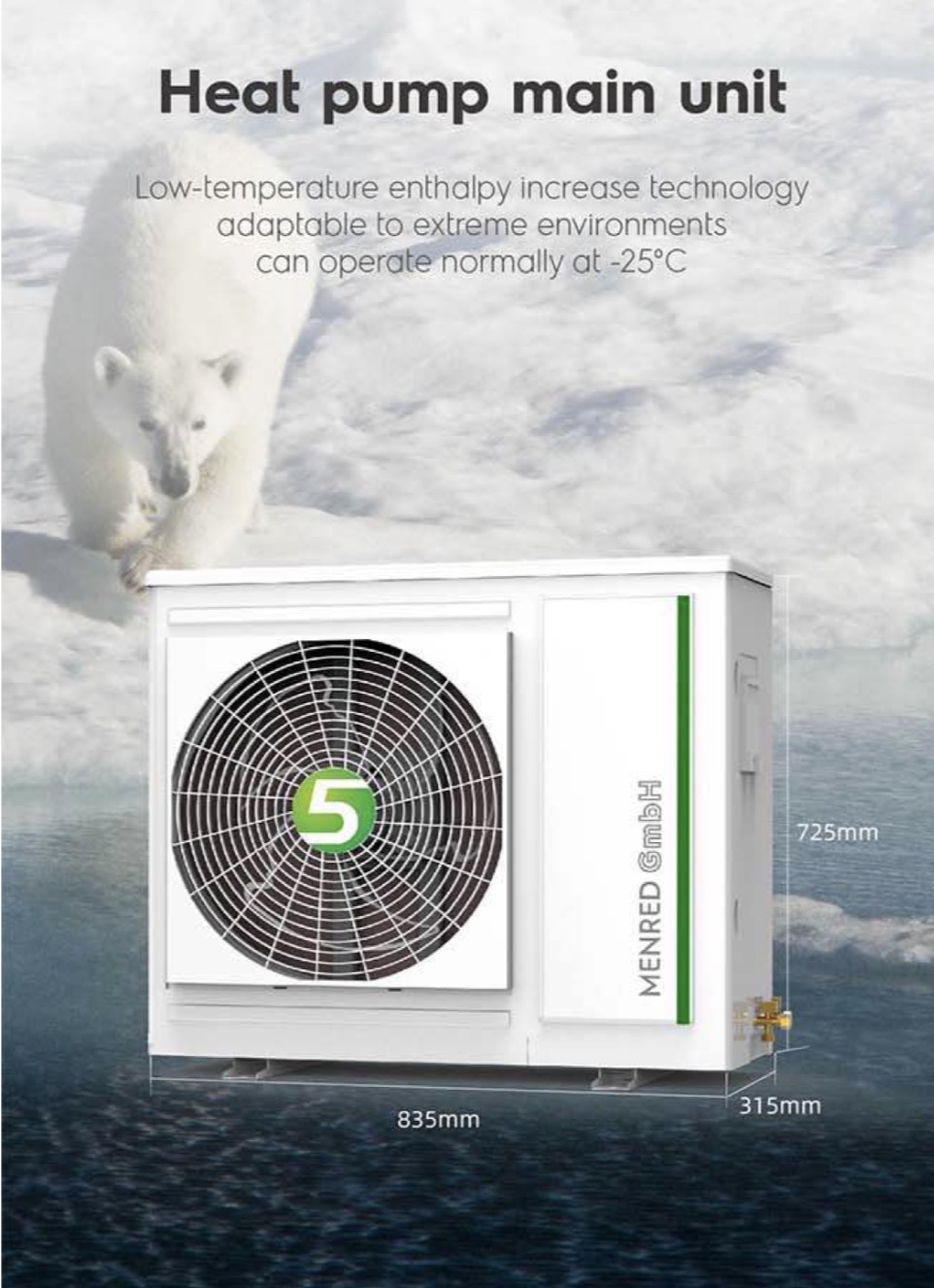

Cooling/heating capacity of outdoor unit: 3500W/4200W

Cooling power: 1388W

Heating power: 1617W

Cooling seasonal energy efficiency ratio(SEER): 4.62

Heating seaonal performance factor(HSPF): 3.16

Reheating dehumidification capacity: 3.2kg/h

Weight:87kg
