T9 pipe Manifolds for Underfloor Heating

T9 pipe manifolds is designed to optimally control the flow and distribution of hydraulic underfloor heating system, temperature regulation and pressure. High quality T9 manifolds is the heart of hydronic underfloor system, which can not only save the energy and money, but also achieve working perfectly without maintenance. Menred manifolds go through 100% leakage detection of underwater gas pressurized test from 0.6-0.8MPa before handover, to ensure total durability and reliability.

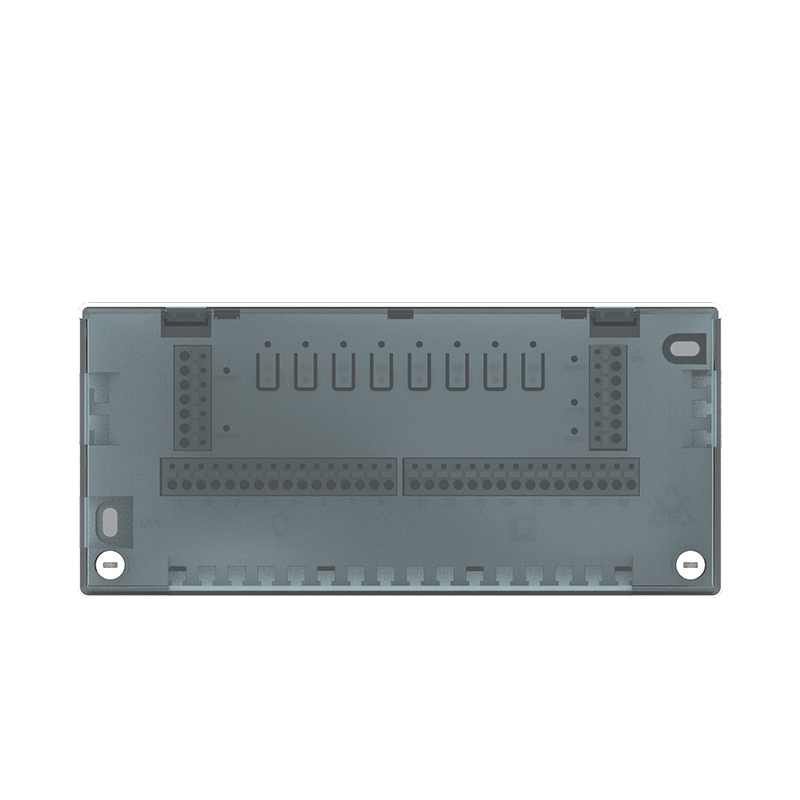

H-BOX 308 Underfloor Heating Wiring Center

Menred underfloor wiring center box H-Box 308 is designed to simplify the wiring of central heating installations，220V/230V power supported and connecting signals wire from heating thermostats for underfloor heating system. It offers a safe and convenient way to connect electro-thermal actuators to the room thermostats in the hydraulic floor heating system, the thermostats with potential-free linkage is fine for the heat sources, like boiler and heat pump.

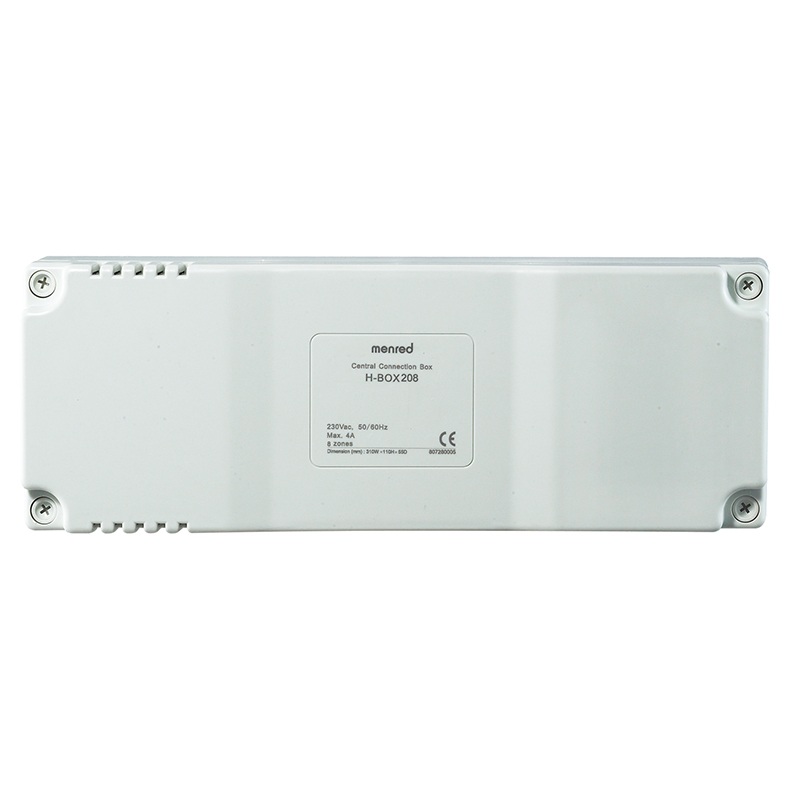

H-BOX...Central Heating Wiring Center

Menred H-Box central heating wiring box  is designed to simplify the wiring of central heating installations.

This flame-retardant plastic box features a spacious design with simplifies installations, which can make circuit checking easier. Moulded box complete with lid, ideal for central heating control wiring.

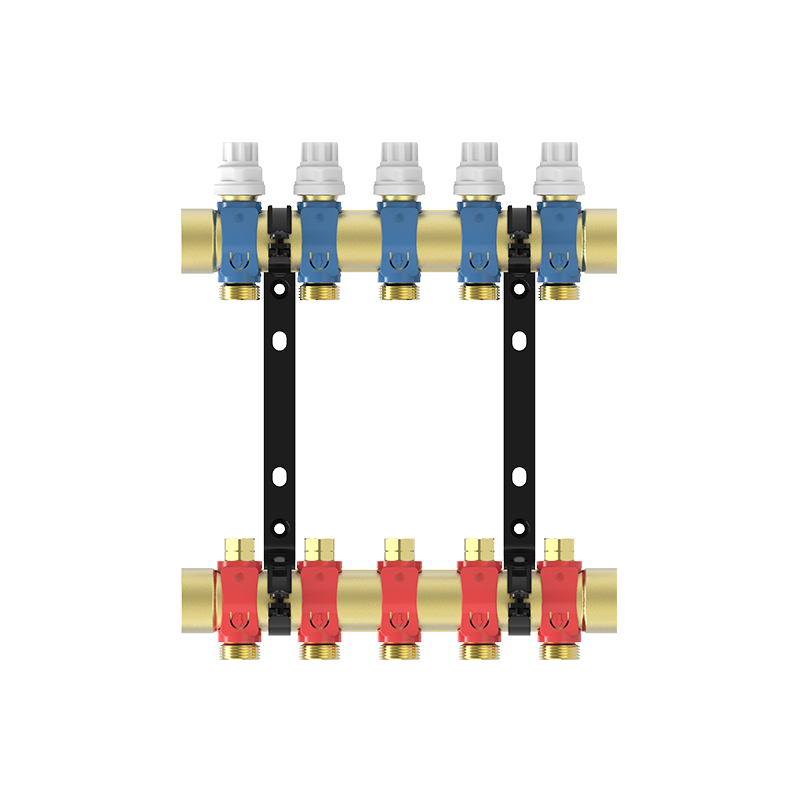

Yi.N Manifold for underfloor heating

Yi.N menred manifold for underfloor heating is designed to optimally control the flow and distribution of water from the heat source (eg. boiler, heat pump) to each underfloor pipe circuit. Yi.N menred dual adjusting intelligent manifolds are made with the high-grade brass materials, high density forging brass body, axial static seal technology to eliminate the leakage possibility of manifolds and surface anti-corrosion processing to highest quality standards. With manual flow adjusting valve, the main pipe diameter is DN25, the distance is 50mm, connection port: 1 inch external thread in the front; 1 inch internal thread in the terminal, control interface: M30x1.5mm, stroke: 3mm (11-14), 2- 8 loops availalbe.

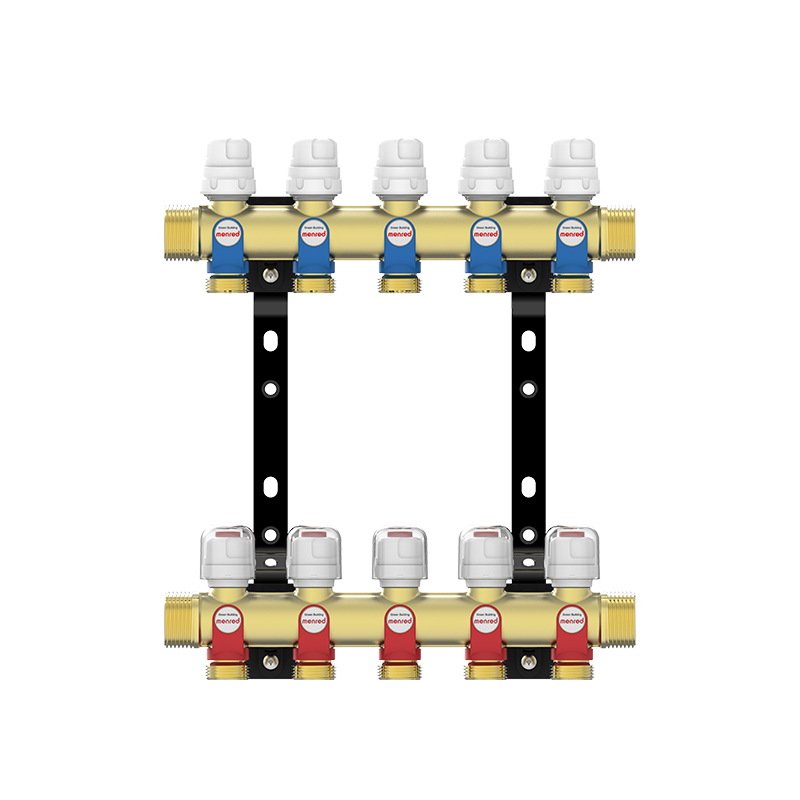

Yi.A Heating Manifolds

Yi.A menred heating manifolds is designed to optimally control the flow and distribution of water from the heat source (eg. boiler, heat pump) to each underfloor pipe circuit.

Yi.A menred anti-scaling dual adjusting intelligent manifolds are made with the high-grade brass materials, high density forging brass body, axial static seal technology to eliminate the leakage possibility of manifolds and surface anti-corrosion processing to highest quality standards.  With manual flow adjusting valve, the main pipe diameter is DN25, the distance is 50mm, connection port: 1 inch external thread in the front; 1 inch internal thread in the terminal, control interface: M30x 1.5mm, stroke I: 3mm (11-14), 2- 8 loops available.

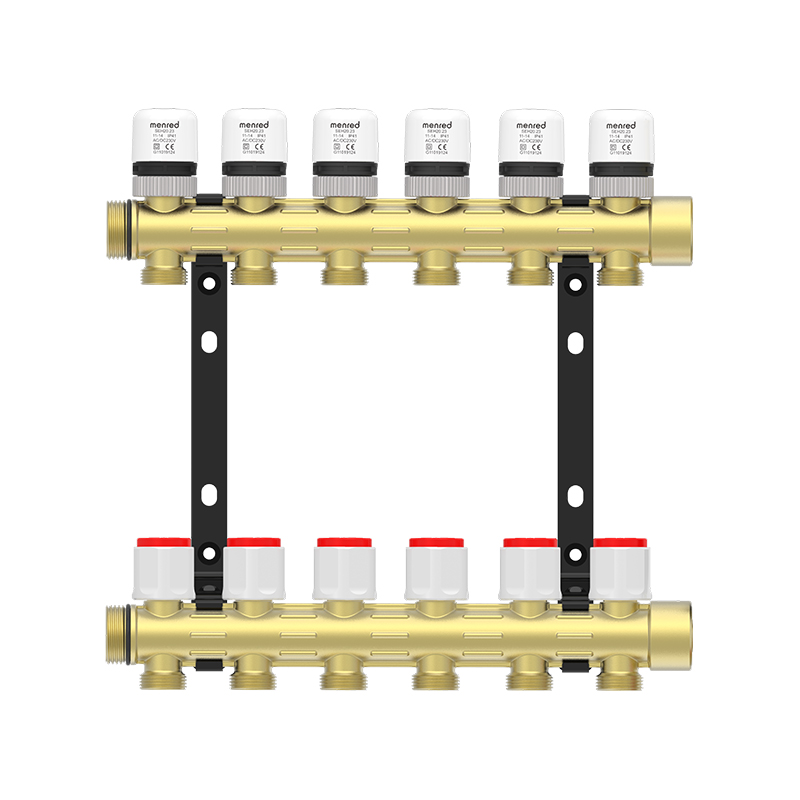

A9 Underfloor Heating Manifolds

A9 menred central heating manifolds is designed to optimally control the flow and distribution of water from the heat source (eg. boiler, heat pump) to each underfloor pipe circuit.  A9 menred dual adjusting manifolds are made with the high-grade brass materials, high density forging brass body, axial static seal technology to eliminate the leakage possibility of manifolds and surface anti-corrosion processing to highest quality standards. The operating pressure is PN10, the main pipe diameter is DN32, the distance is 50mm, connection: G1, control Interface: M30x1.5mm, stroke: 3mm (11-14)

A7.S Underfloor Heating Manifolds

A7.S menred  underfloor heating manifolds is designed to optimally control the flow and distribution of water from the heat source (eg. boiler, heat pump) to each underfloor pipe circuit.

A7.S menred manifolds are made with the high-grade brass materials, high density forging brass body and axial static seal technology to eliminate the leakage possibility of manifolds to highest quality standards. The operating pressure is PN10, the main pipe diameter is DN25, the distance is 50mm, connection:G1", 2-8 loops available.
