TM30 Thermal Actuator

TM30 Thermal Actuator

TM30 Thermal Actuator

TM30.23 electro thermal actuator can be used in the floor heating manifolds, small valves, and motorized balance valves. Its noiseless when working. And the screw thread is M30*1.5mm universal type.

Technical data

Voltage: AC220V

Stroke:11-15mm

Valve opening time:3min.

Connecting size: M30*1.5mm

Ambient temperature:-5~50

Cable length:800mm

Housing material: PC anti-flammable

Protection class: IP41

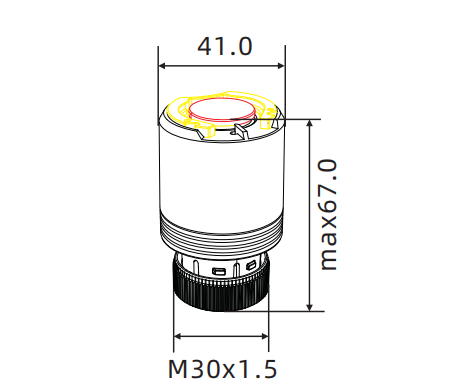

Dimension(mm)

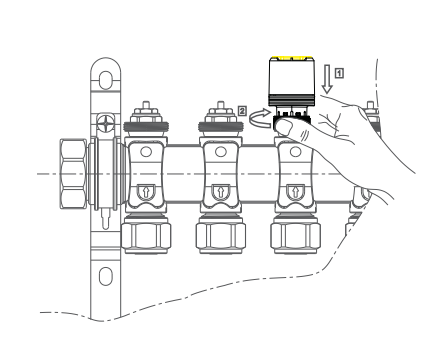

Installation

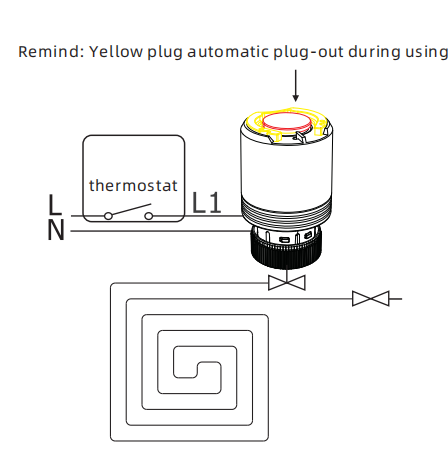

Wiring diagram







Data download

FAQs

what is a motorized valve in HVAC? what is a motorized valve in HVAC?
Menred motorized valves are for heating and cooling(Fan coil unit), to ensure stable and accurate control room temperature. Electric motor is mounted on the valve and geared to the valve stem to open or close the valve.
Read More
how do underfloor heating actuators work? how do underfloor heating actuators work?
Underfloor heating actuator is controlled by room thermostat, it open or closed according to room temperature or manifolds loops return water temperature. The electric heating actuator realises the temperature adjustment function through the principle of thermal expansion and contraction of the temperature sensing element. It is mainly used in the room temperature control or layered temperature control system of the floor heating system. In the individual room where the UFH is installed, the temperature needs to be adjusted, and the temperature controller can be set Linked with thermal actuator.
Read More
What does a thermal actuator do? What does a thermal actuator do?
Thermal actuator is the key component of underfloor heating system, it works with manifolds to open or close a valve based on a temperature setting value. It design to replace manual balancing valve on manifolds to provide electronic control of each individual manifolds branch.
