TM20.23 Electro-thermal Actuator

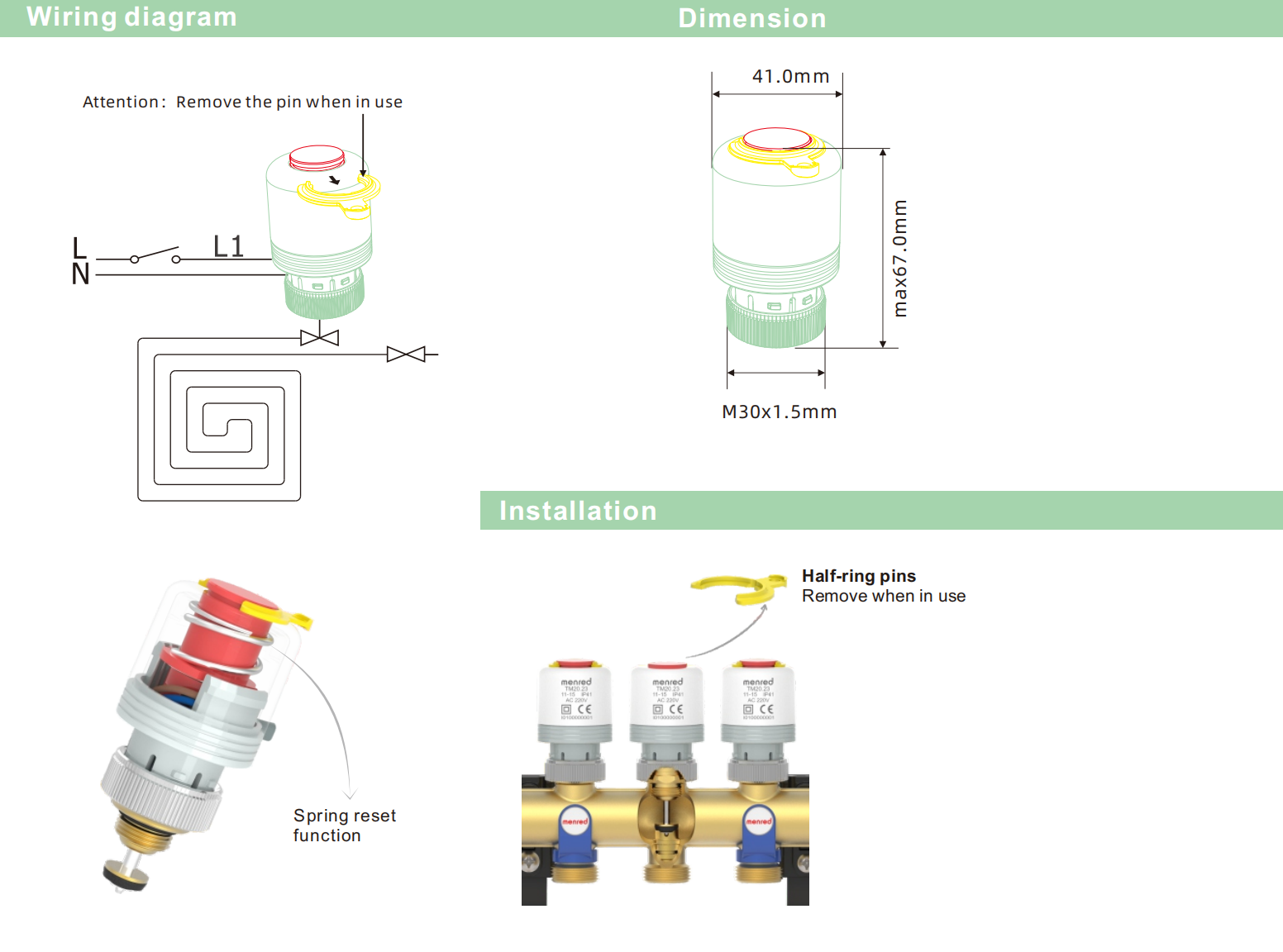

Electrothermal actuator for manifold branch valves, small valves, dynamically balanced valves, built-in low-power wax element, driven by PTC heating, for the control of the valve flow of the electrically driven part. This product with pin design, factory to keep the valve open, the use of the need to pull out of the pin, running without noise, with spring reset function.

Inquiry Now

TM20 menred thermal actuator designed for floor heating manifolds, fan coil unit valves to control the valve flow of heating and cooling system.

Technical data

Voltage: AC 220V

Force: 100N

Stroke: 4mm(11-15)

Valve opening time: 3min

Power consumption: ≤2.5W

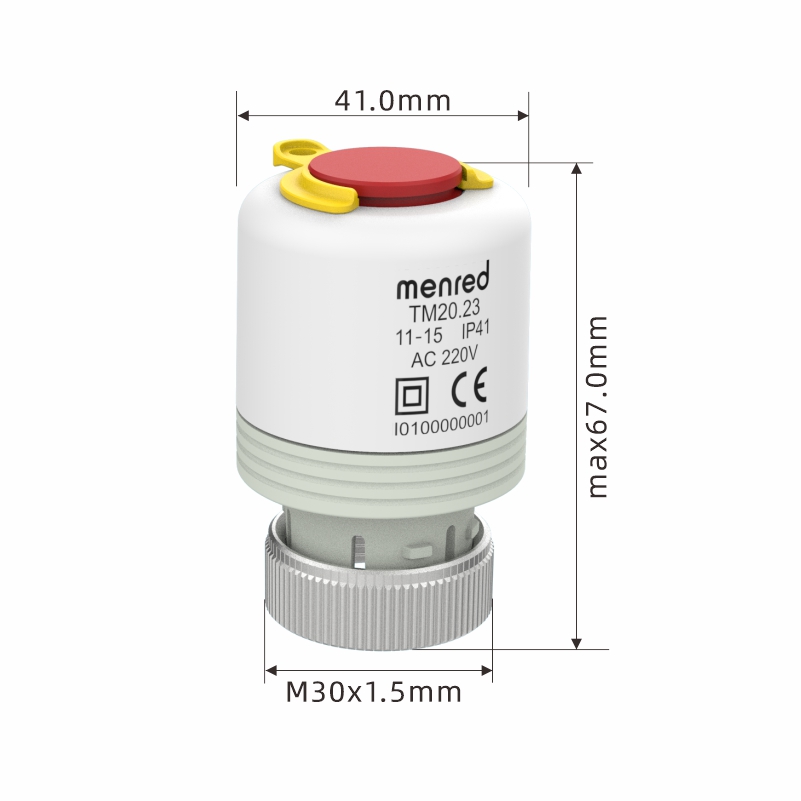

Connecting size: M30x1.5mm

Ambient temperature: -5~50°C

Protection class: IP 41

Cable length: 800mm
