T9 pipe Manifolds for Underfloor Heating

T9 pipe manifolds is designed to optimally control the flow and distribution of hydraulic underfloor heating system, temperature regulation and pressure. High quality T9 manifolds is the heart of hydronic underfloor system, which can not only save the energy and money, but also achieve working perfectly without maintenance. Menred manifolds go through 100% leakage detection of underwater gas pressurized test from 0.6-0.8MPa before handover, to ensure total durability and reliability.

Inquiry Now

Description

T9 Menred pipe manifolds are expertly designed to efficiently control the flow and distribution of water from the source of heat, such as a boiler or heat pump, to each individual underfloor pipe circuit. The manifold is made up of a water separator and a water collector, with the separator connecting to the inlet pipe and equipped with internal balancing valves, and the collector connecting to the return pipe and equipped with shut-off valves.

By utilizing the Menred manifold, you gain the ability to individually control the various zones within your heating system. This allows you to adjust the temperature and comfort level according to the specific needs of each zone, while also preventing energy waste from heating unused areas. A high-quality manifold is the foundation of any hydronic underfloor heating system, and Menred manifolds are no exception. With their exceptional quality, you can achieve optimal function and performance while avoiding the need for maintenance.

Before being handed over to customers, Menred manifolds undergo a 100% leakage detection test under pressurized conditions from 0.6-0.8MPa, ensuring the highest level of durability and reliability. Choosing Menred manifolds will not only save you energy and money, but also guarantee a superior level of performance and dependability.

The T9 pipe manifolds come with a range of features designed for optimal performance, including:

High-density forged brass body, ensuring long-lasting durability and strength
No leakage technology, ensuring that the system functions perfectly without any leaks
Axial static seal technology, providing a reliable and secure seal between the components
Split type pipe connectors, allowing for easy selection and installation of the appropriate pipe type
Clip-on wall-mounting bracket, making installation a breeze and providing a secure and stable mount
Nature color and surface anti-corrosion processing, ensuring a clean and attractive appearance while protecting against corrosion
100% leakage detection, ensuring that the system does not leak and is always functioning at the highest level of efficiency.

Please note the following regarding the installation of T9 manifolds:

The installation of T9 manifolds should be performed by a professional plumbing and heating company. This ensures that the system is installed correctly and in accordance with all relevant safety guidelines and regulations.
If the T9 manifolds are installed by non-professionals, the warranty may be voided. It is important to have the system installed by professionals to ensure that everything is correctly installed, and the system will function as expected.

By following these guidelines, you can ensure that your T9 manifold system is installed and operates correctly, and that you can benefit from all of its advanced features and benefits.

Specification

Material	High-grade brass (HPb59-3)
Operating pressure	PN10
Medium temperature	water 5- 95℃
Manifold distance	50 mm
Connect port	G1"
Main pipe diameter	DN 32
Control interface	M30X1.5 mm, stroke 3 mm (11-14)
Loops	2-8 loops

Selection Table

Model	Specification	Width(mm)

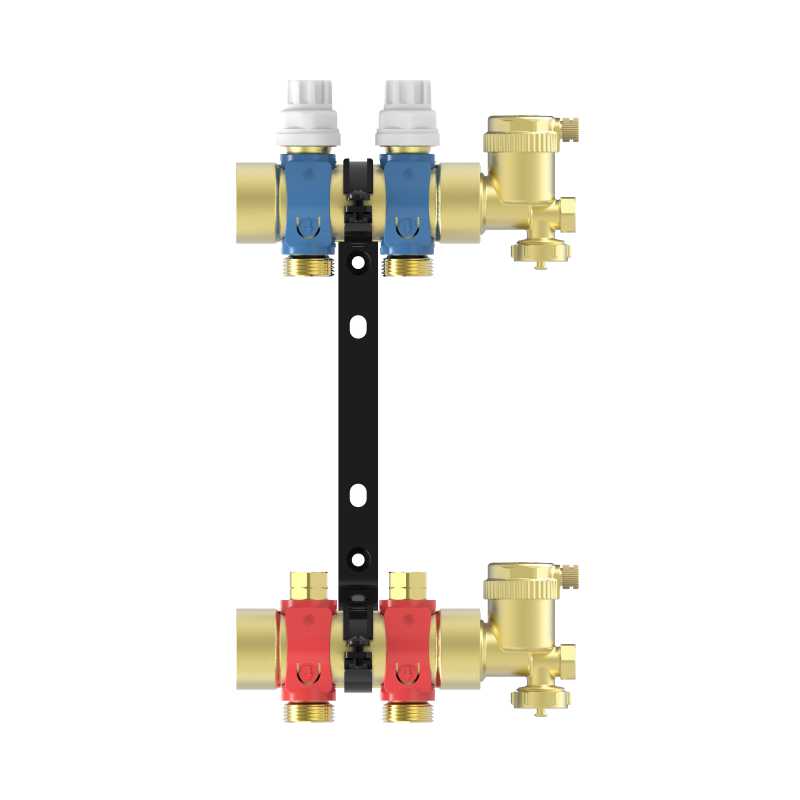

902	2-loop manifolds	177

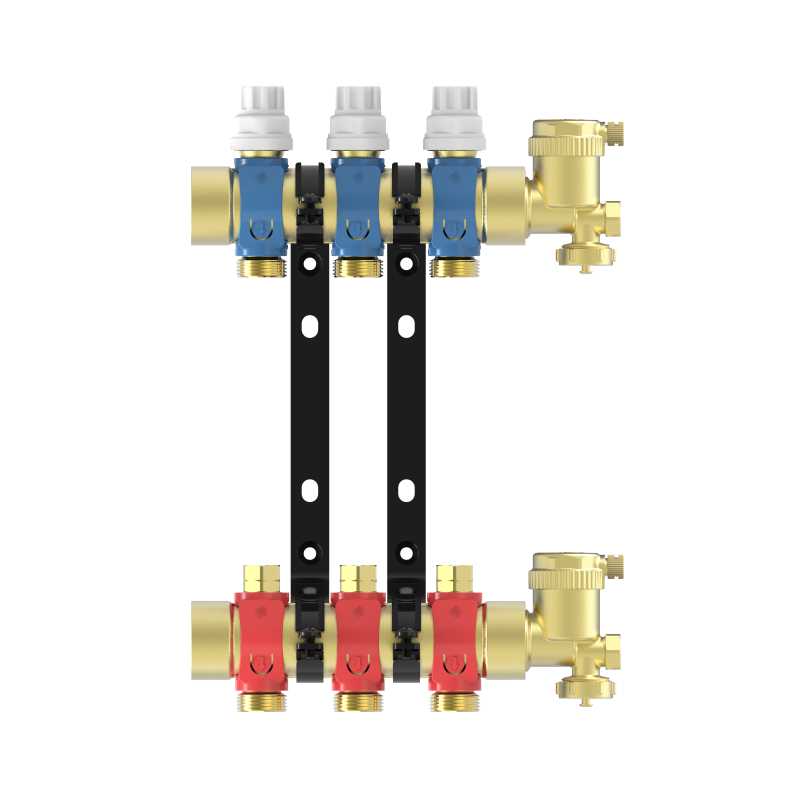

903	3-loop manifolds	227

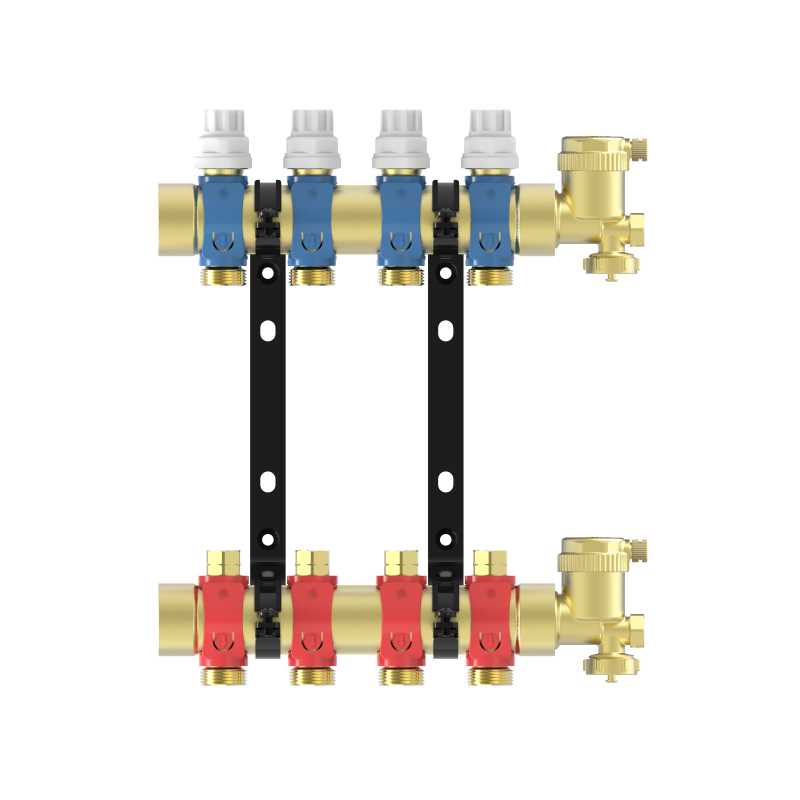

904	4-loop manifolds	277

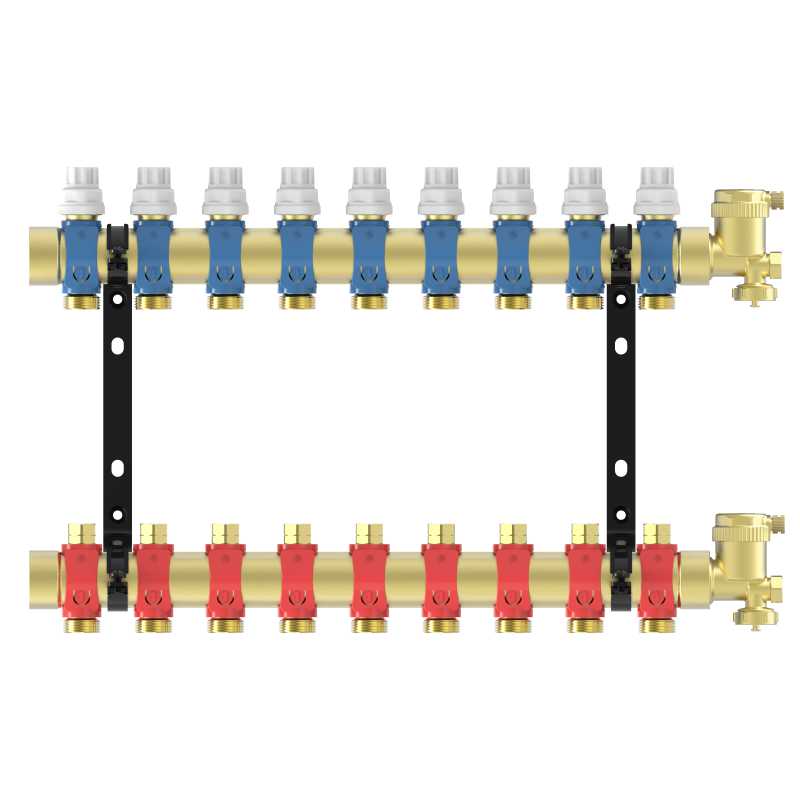

905	5-loop manifolds	327

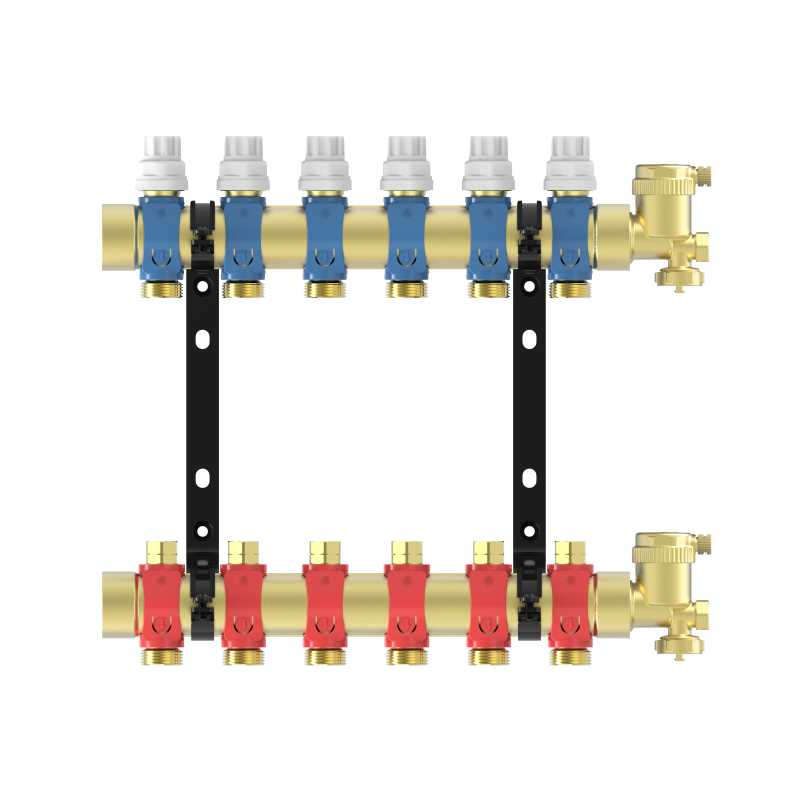

906	6-loop manifolds	377

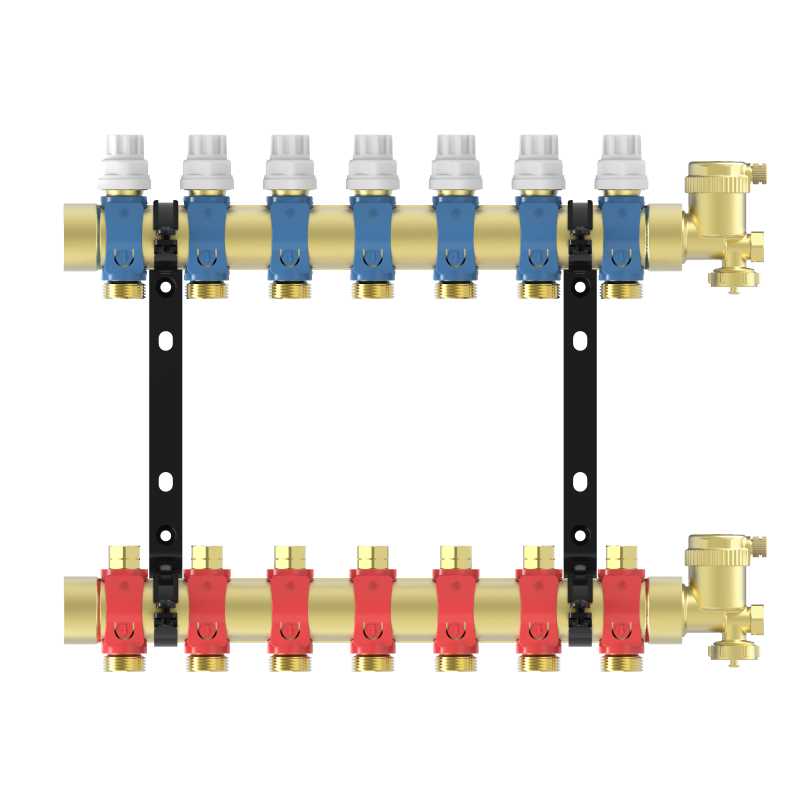

907	7-loop manifolds	427

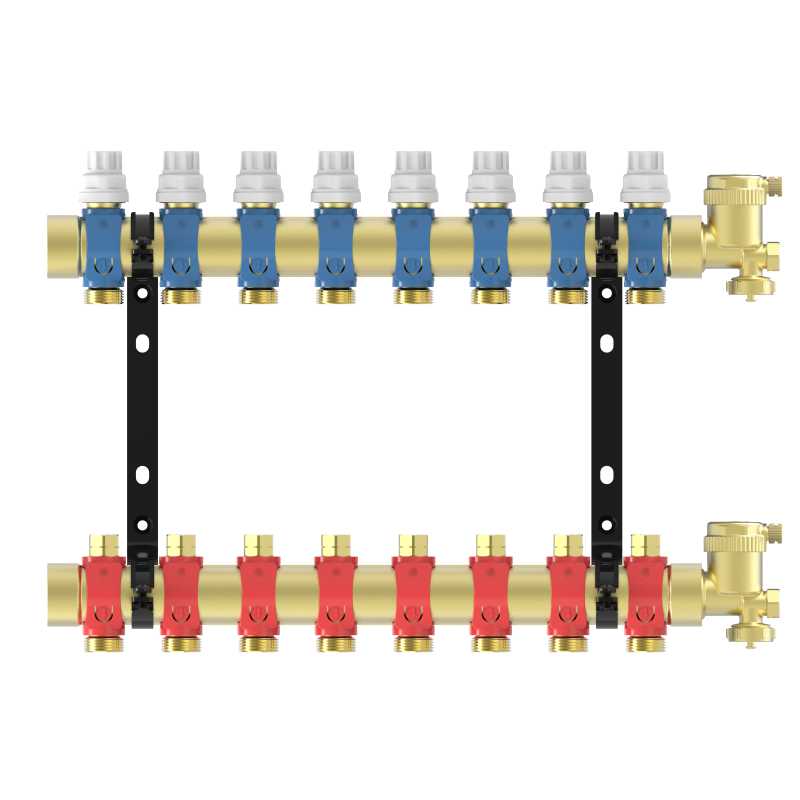

908	8-loop manifolds	477
909	9-loop manifolds	527

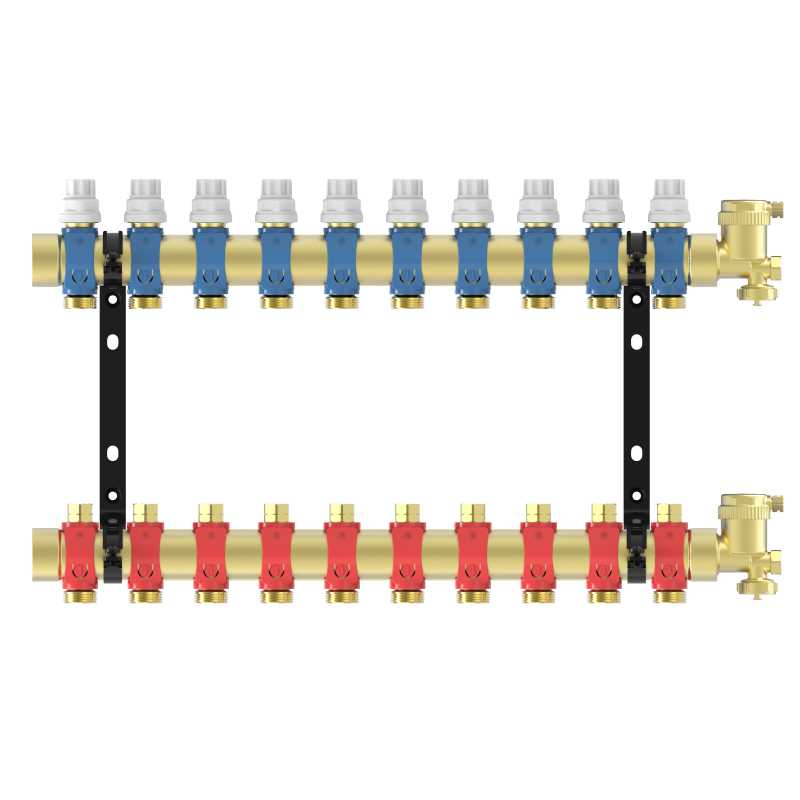

910	10-loop manifolds	577

Data download

Menred T9 pipe Manifolds

FAQs

underfloor heating vs radiator underfloor heating vs radiator

Underfloor heating can be used in any room of your house, low-temperature floor heating is radiant heating, the effective temperature of the ground is higher than the air temperature of the breathing line; unique microclimate conditions are formed, so that the heat provided is stronger in the feet of the person and the head is gentle;

How do i choose a suitable underfloor heating manifolds? How do i choose a suitable underfloor heating manifolds?

To choose a suitable underfloor heating manifolds, the manifolds need to meet the following requirements: 1. High density material, which can ensure high quality 2. Detection: 100% leakage detection underwater gas pressurized test: 0.6-0.8 MPa 3. If your heating source is gas boiler, the DN 25 diameter manifolds are recommended ; if you heating source is GSHP(Ground Source Heat Pump), DN32 diameter manifolds are recommended

Why it is necessary to install a manifolds for underfloor heating system? Why it is necessary to install a manifolds for underfloor heating system?

Because it controls the flow and distribution of water from the heat source( for example boiler, heat pump) to each underfloor heating zone. It feeds the warm water to heating pipes from the boiler or heat pump. A high quality manifolds is the most important component of underfloor heating system, which is individual control the different zone of heating system. It is recommended to be installed and used together with smart thermostat and actuators for automatic control to achieve the purpose of energy saving.

How do underfloor heating manifolds work? How do underfloor heating manifolds work?

Underfloor heating manifold controls the flow and distribution of water from a heat source (for example, a boiler or heat pump) to each zone. It feeds the warm water to heating pipes from the boiler or heat pump. An underfloor heating manifold is the main part of the underfloor heating system that controls the individual zones of heating. It is recommended to be installed and used together with smart thermostat and actuators for automatic control to achieve the purpose of energy saving.

Where is the most suitable place for underfloor heating manifolds? Where is the most suitable place for underfloor heating manifolds?

When installing the floor heating manifold, if there is no equipment room, the most suitable place is under the cabinet in the kitchen, and the second is under the basin in the bathroom. In this way, if there is a leak, it can be drained quickly. Regarding the selectivity of the two positions, generally the manifold is placed in the centre of each house, which has the following advantages: 1. When installed in the middle of the house, it can effectively save heating pipe materials; 2. With fewer pipes, there will be less water storage, and the resistance will be reduced, so the wall-hung boiler will operate more efficiently; 3. Placed in the middle position, heat to each room is a little more balanced.

For underfloor heating, what temperature is most energy efficient？ For underfloor heating, what temperature is most energy efficient？

In order to optimize energy efficiency for underfloor heating systems, we menred recommend that they operate at temperatures ranging from 35°C - 50°C
