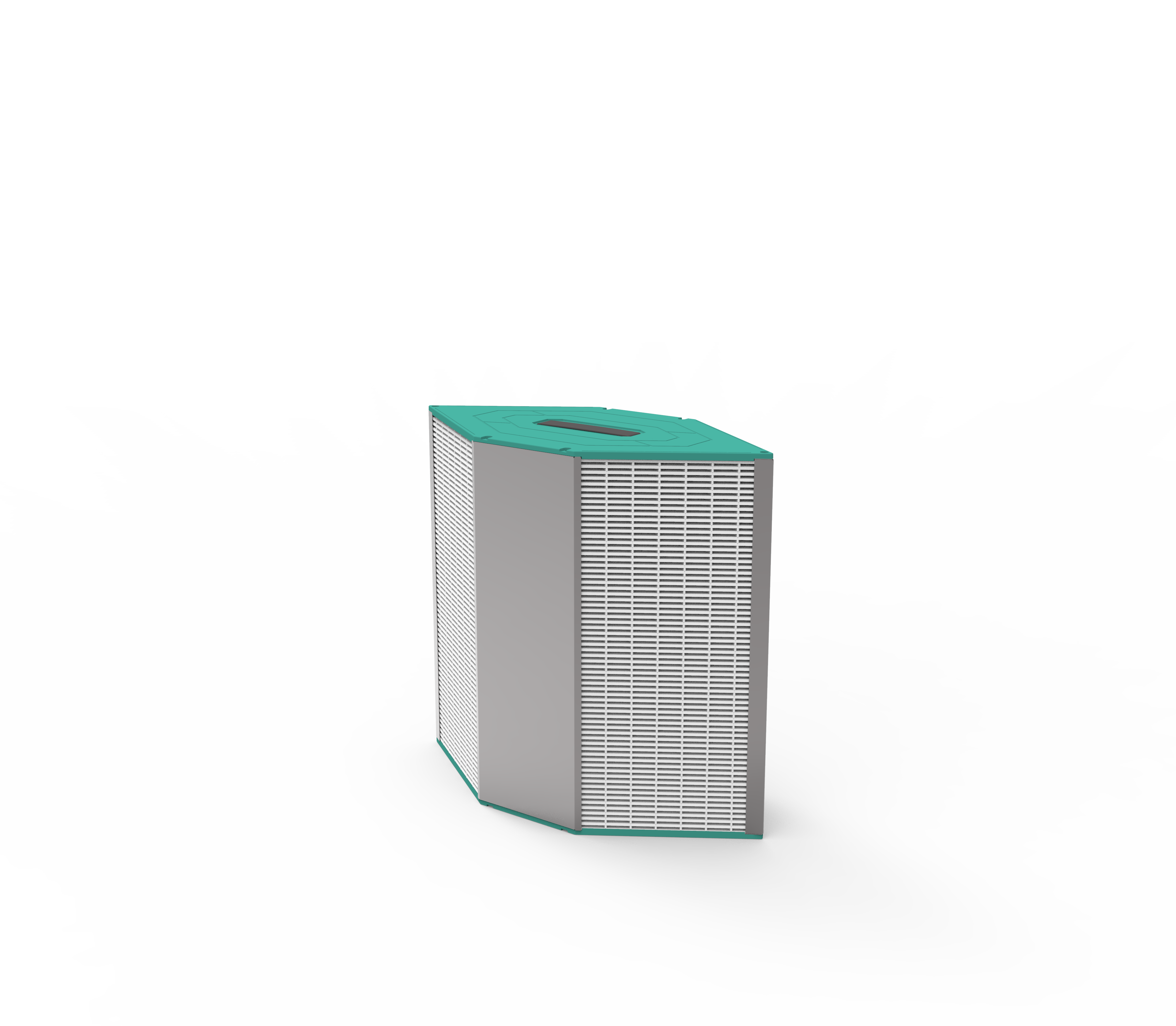

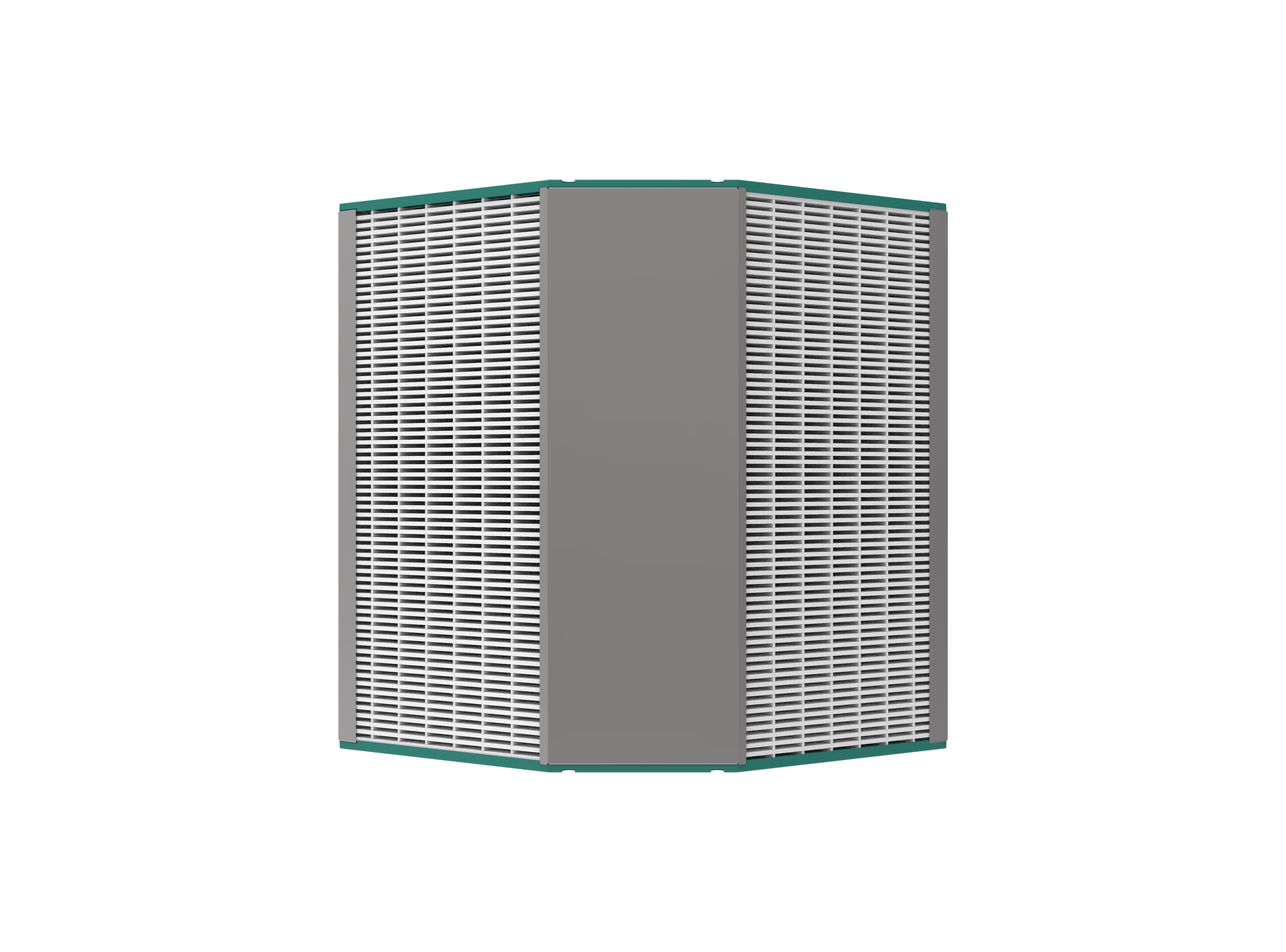

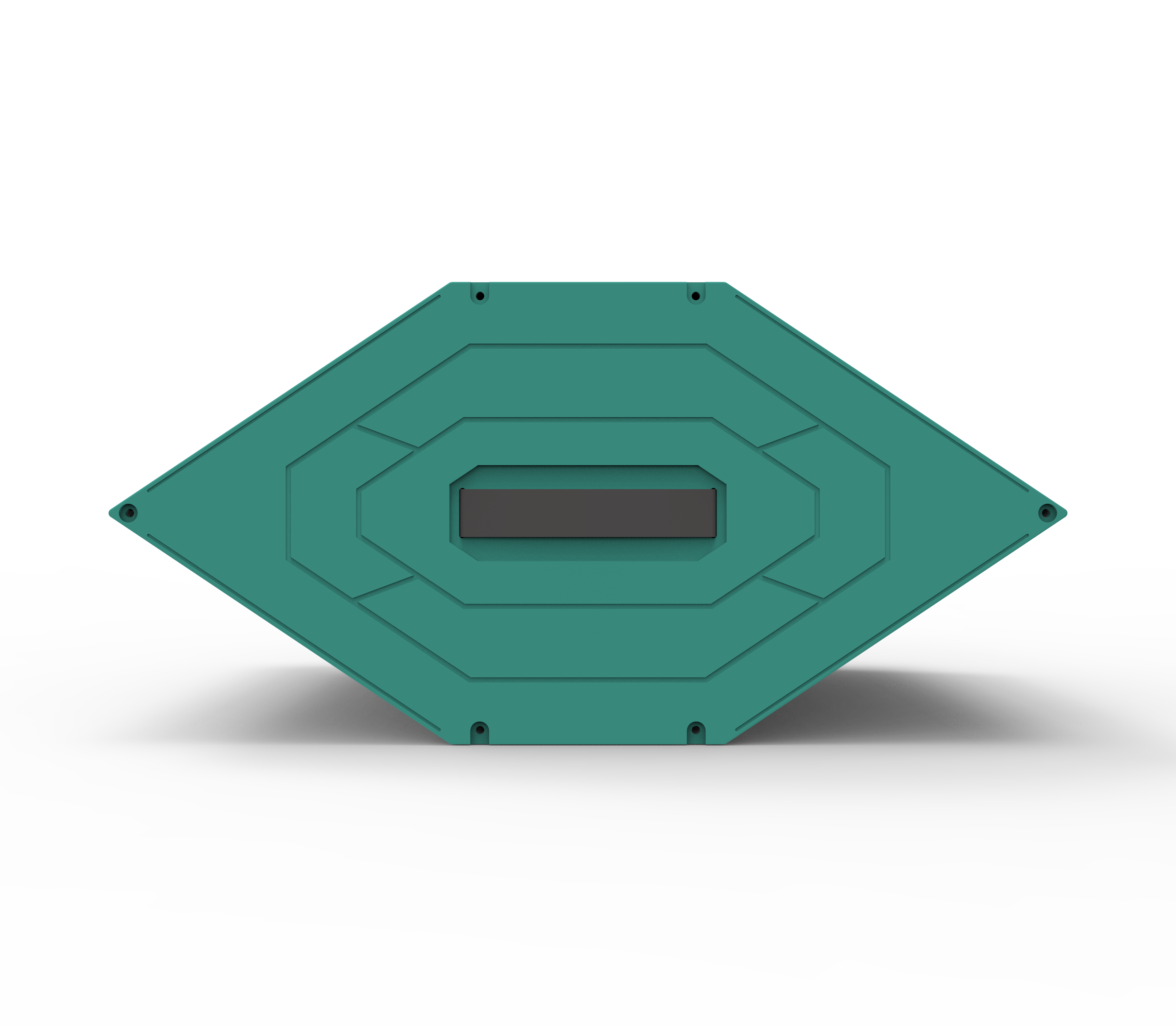

Mair Energy Recovery Exchanger core

Mair Energy Recovery Exchanger core Mair Energy Recovery Exchanger core Mair Energy Recovery Exchanger core Mair Energy Recovery Exchanger core Mair Energy Recovery Exchanger core

Mair Energy Recovery Exchanger core
  Mair core is designed for the manufactures who are not only dedicated to comfort, but also to energy saving and sustainable development. This application was chosen to be our first because it demonstrates the material’s functionality. The material rapidly transfers heat and moisture from the incoming air stream to the outgoing without air leakage.



Features:

1.Non-porous membrane

Air tightness, non-porous membrane, keep vacuum airtight, selective osmosis, anti-scaling, anti-biological pollution. Special channels and acid-based characteristics of the membrane surface.

2. Energy saving and comfort

The Mair core uses field-tested nanotechnology providing an exceptional total system effectiveness of greater than 65%. The Mair core is effective in both summer and winter conditions. Mair can transfer humidity (if needed) into the Fresh Air (FA) stream (winter conditions) and reduce moisture from the FA stream during periods of high outdoor humidity (summer conditions). Mair works year round providing maximum energy savings and comfort.Mair's design and performance advantages provide an optimum solution for the return on invested capital with average payback ranging from immediate (new projects with downsized HVAC equipment) to five years (retrofit projects).

Specification:

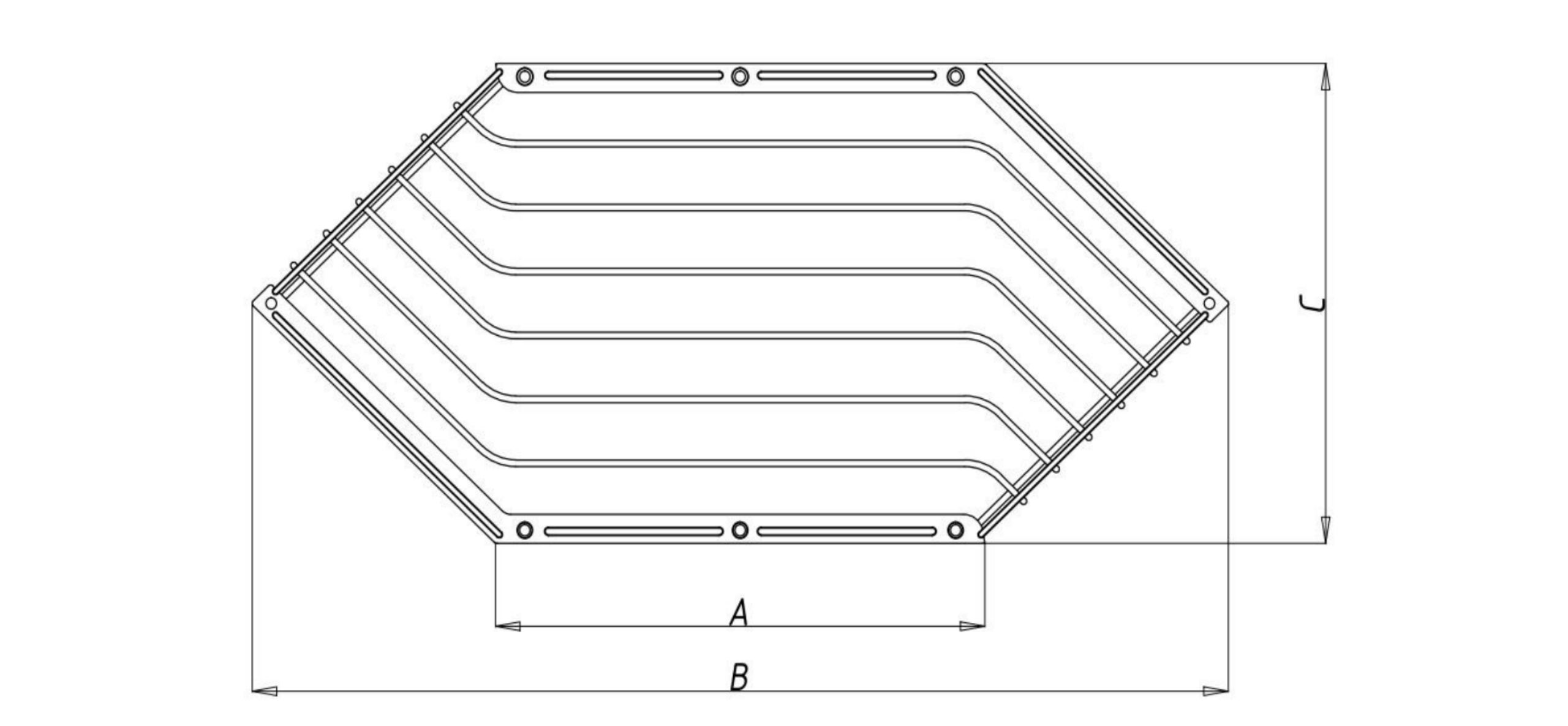

Model Size(mm)A BC
ERV.C1380*185*100100380185
ERV.C2380*230*100100380230
ERV.C3400*185*200200400185


FAQs

How enthalpy exchanger works? How enthalpy exchanger works?
By recovering and reusing the energy from the exhaust air, enthalpy exchangers effectively reduce the energy demand of the HVAC system, improve indoor air quality, and enhance overall energy efficiency in buildings.
Read More
what is an enthalpy exchanger what is an enthalpy exchanger
Enthalpy exchangers are particularly useful in climates where there are significant temperature and humidity differences between the indoor and outdoor environments. Apart from transferring sensible heat (temperature), they also transfer latent heat (moisture) between the airstreams, providing the benefits of both heat and moisture recovery.
Read More
