Heidelberg underfloor heating system

Heidelberg underfloor heating system Heidelberg underfloor heating system

Heidelberg underfloor heating system
Menred heidelberg intelligent whole house underfloor heating system is ulmost easy to choose, buy and installation, that including boiler, distribution centre, thermostat and pipe fittings. Simple operation – directly on the controller or via smartphone from outside the home.

A hybrid solution, using a combination of water system, it provides an ideal solution for one or multi-storey homes. There are one stop to buy underfloor heating system, boilers, thermostat, manifolds, pipes and fiitings, all in one, you can got all from menred, only need to push your order "button".

Product Specifications:
1 Boiler: 24KW, meet the heating and DHW demand
1 Bbox intelligent distribution station included  H1.in wireless thermostat
1 PE-Xa pipe (80m) with pipe fitting
4 PE-RT pipes(2rollers/carton*2cartons)

Model

H16.50

H16.70

H20.100

H20.120

Max. area

50m²

70m²


100m²


120m²

Pipe diameter

16*2.0mm

20*2.0mm

Pipe length

75m

150m

100m

120m

Pipe laying spacing

150~200mm

200~250mm

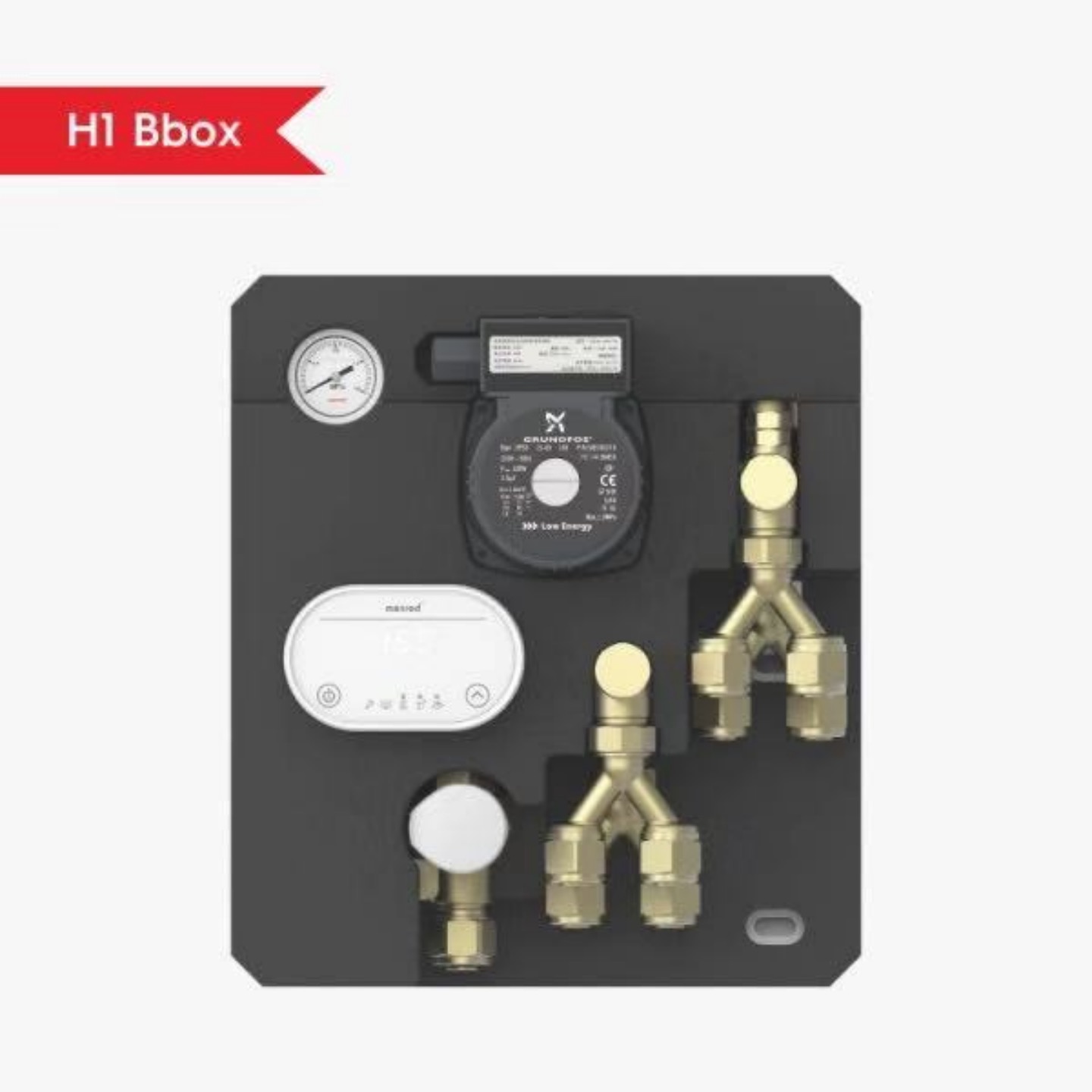

H1 Bbox  Intelligent distribution station

A new type of underfloor radiant heating control device. This is apply to underfloor heating system that can be automatically linked to the wall-hung boiler for heating, according to the electronic high-precision mixed water technology, the ideal water supply temperature of the floor heating system is guaranteed. Wireless temperature controller is used to start the underfloor heating system with one button to achieve room comfort and energy saving.

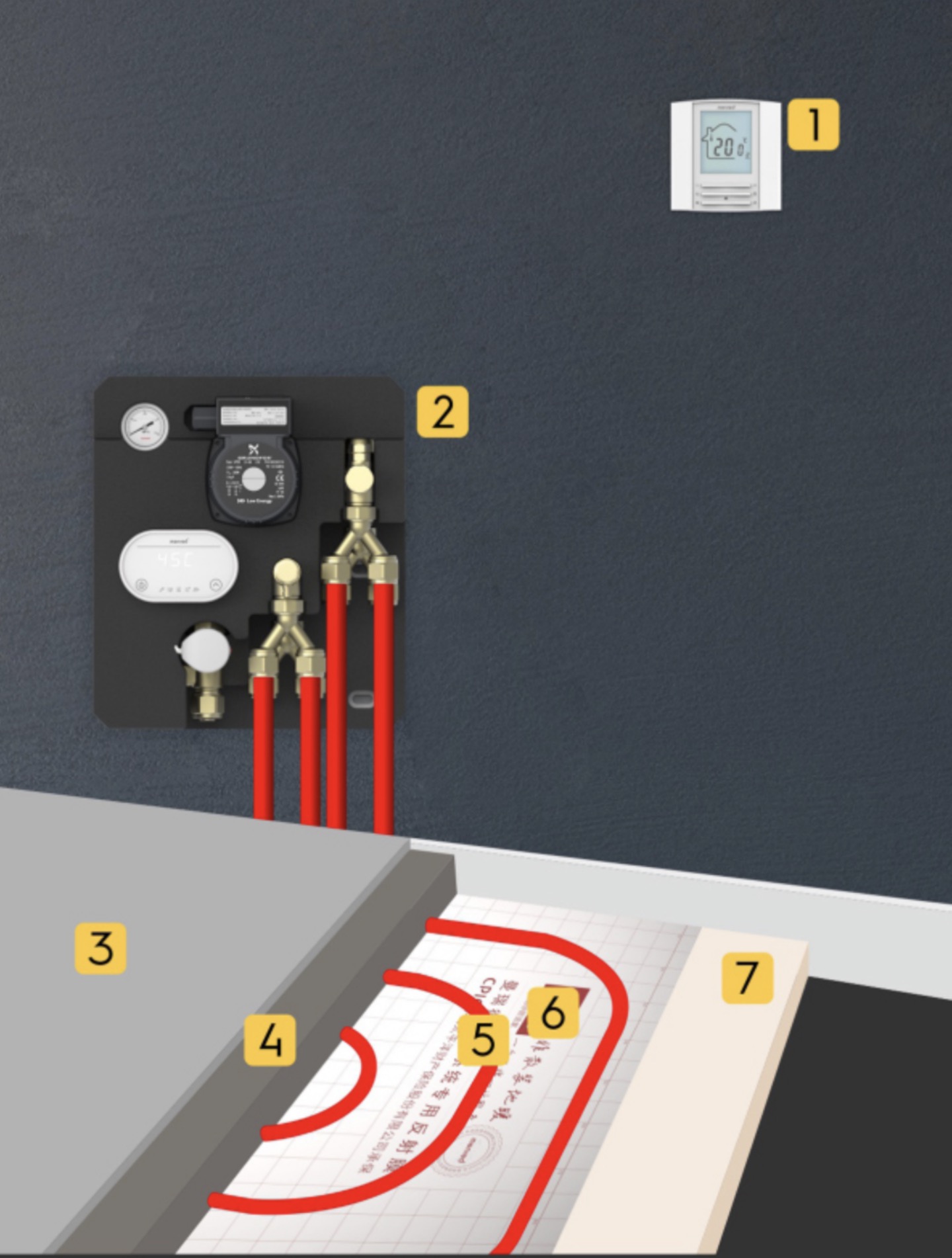

1. Wireless thermostat
2. Bbox  Intelligent distribution station
3. Floor decoration
4. Filling layer( cement,mortar)
5. PE-RT pipe
6. Reflective film
7. Insultaion layer

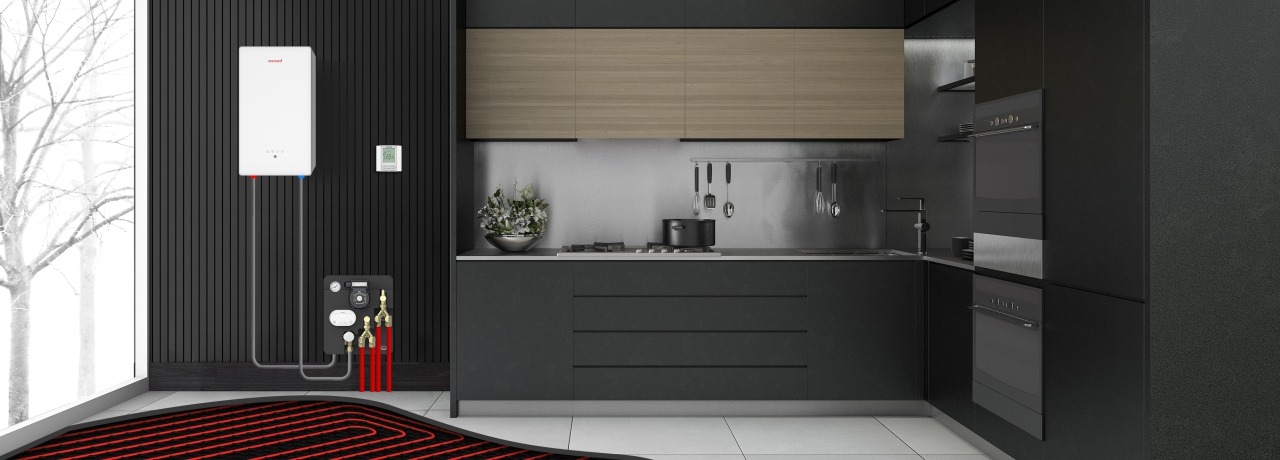

Heidelberg intelligent whole house floor heating system
> whole house underfloor heating system, one-stop shopping.
>CAD design software is not required.
>Pipe hydraulic balance design-free
>According to heating area to chose product Model
>Thanks to the system perfect design, variable water temperature, system adaptation
>Easy to buy (multi-in-one set)
