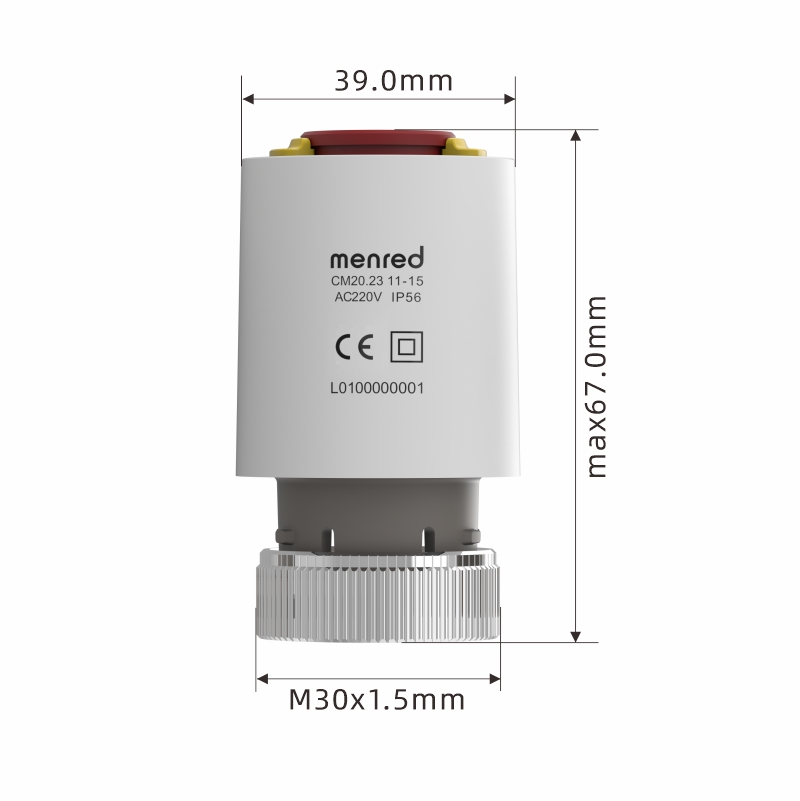

CM20 Electro-thermal Actuator

MENRED CM20 thermal actuator is used in radiant heating and cooling systems, including underfloor heating ,radiator panles and air conditioning valves, in these systems, thermal actuators controls the flow of hot or cold water through the pipes or radiators.

Inquiry Now

The electro-Thermal Actuator is design for heating and cooling systems, it controls the opening and closing of valves based on the temperature setting, ensuring that the floor and ceiling maintains the desired temperature. Thermal actuator delivers reliable temperature control with an IP56 rating and 180° installation flexibility. It features a long lifespan,noiseless operation, and requires no maintenance, with proven performance in millions of installations.

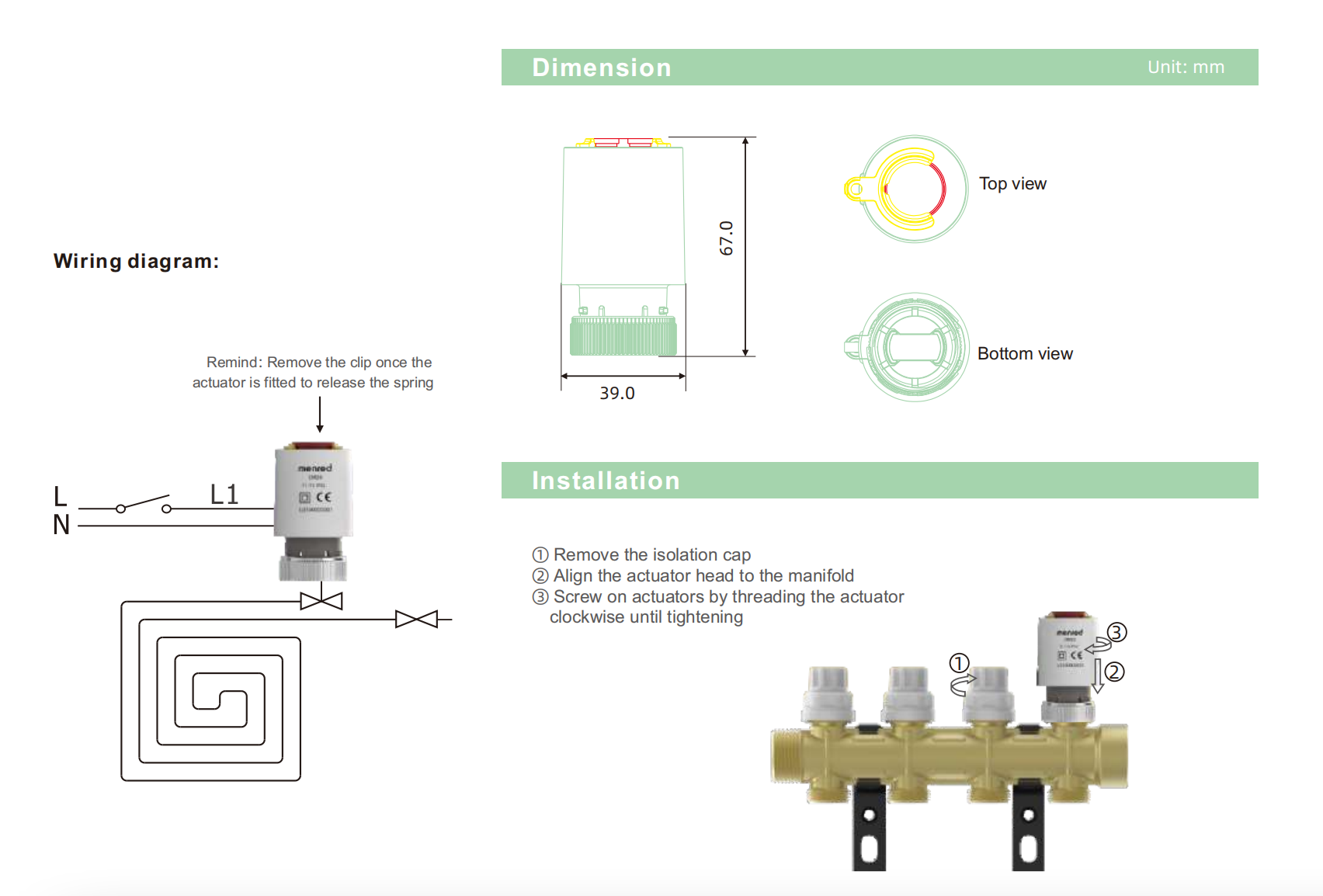

Technical data

Model: CM20.23 / CM20.24

Voltage: AC 220V / AC/DC 24V

Force: 100N

Stroke: 11-15mm

Power consumption: ≤2.5W

Version: Normally Closed (NC)

Open/Close time: ~ 3mins

Mechanical connection: M30 x 1.5 mm

Ambient temperature: -5~50°C

Cable Length: 800mm

Housing material: Flame retardant PC
